Question
What is the difference between Fresnel and Fraunhofer diffraction?
✓
Answer
| No. | Fresnel diffraction | Fraunhofer diffraction |
| i. | The Source of light and screen is kept at a finite distance. | The Source of light and screen is at infinite distance. |
| ii. | Spherical or cylindrical wavefronts are considered. | Only plane wavefronts are considered. |
| iii. | It is observed in straight edge, narrow slit, etc. | It is observed in the single slit, double slit, etc. |
| iv. | Lenses are not used. | Convex lenses are used. |
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
An iron rod of area of cross-section \(0.1 m ^2\) is subjected to a magnetising field of \(1000 A / m\). Calculate the magnetic permeability of the iron road. [Magnetic susceptibility of iron \(=59.9\); Magnetic permeability of vacuum \(=4 \pi \times 10^{-7} S\). I. Unit.]
An ideal gas of volume $2 L$ is adiabatically compressed to $(1/10)^{th}$ of its initial volume. Its initial pressure is $1.01 \times 105 Pa$, calculate the final pressure. (Given ? $= 1.4$)
→State the characteristics of circular motion.
The susceptibility of magnesium at \(300 K\) is \(1.2 \times 10^{-5}\). What will be its susceptibility at \(200 K\) ?
If the work done by a system on its surroundings is $100 J$ and the increase in the internal energy of the system is $100$ cal, what must be the heat supplied to the system? (Given $: J = 4.186$ J/cal)
→Derive the relation between surface tension and surface energy per unit area.

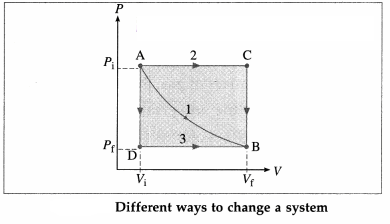

Draw a diagram to illustrate that the work done by a system depends on the process even when the initial and final states are the same.
