What is the mutual inductance of a two-loop system as shown with centre separation l
  • A
    $\frac{{{\mu _0}\pi {a^4}}}{{8{l^3}}}$
  • B
    $\frac{{{\mu _0}\pi {a^4}}}{{4{l^3}}}$
  • C
    $\frac{{{\mu _0}\pi {a^4}}}{{6{l^3}}}$
  • ✓
    $\frac{{{\mu _0}\pi {a^4}}}{{2{l^3}}}$
✓

Answer

Correct option: D.
$\frac{{{\mu _0}\pi {a^4}}}{{2{l^3}}}$
d
(d)Magnetic field at the location of coil $(2)$ produced due to coil $(1)$

${B_1} = \frac{{{\mu _o}}}{{4\pi }}.\frac{{2M}}{{{l^3}}}$
Flux linked with coil $(2)$
${\phi _2} = {B_1}{A_2} = \frac{{{\mu _o}}}{{4\pi }}\frac{{2i\;(\pi {a^2})}}{{{l^3}}} \times (\pi {a^2})$
Also ${\phi _2} = Mi$ $ \Rightarrow M = \frac{{{\mu _o}\pi {a^4}}}{{2{l^3}}}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A soap bubble of radius $r$ has monoatomic ideal- gas inside. The gas is heated in such a manner that bubble remains in mechanical equillibrium. Assuming that the soap material of the bubble has no heat capacity, the molar heat capacity of the gas in the process will be
(Neglect atmospheric pressure)
→
Four persons $K,\,L,\,M$ and $N$ are initially at the corners of a square of side of length $d$. If every person starts moving, such that $K$ is always headed towards $L,\,L$ towards $M,\,M$ is headed directly towards $N$ and $N$ towards $K$, then the four persons will meet after
→
A parallel plate capacitor of area ' $A$ ' plate separation ' $d$ ' is filled with two dielectrics as shown. What is the capacitance of the arrangement?
→
The potential energy of a particle of mass $100 \,g$ moving along $x$-axis is given by $U=5 x(x-4)$, where $x$ is in metre. The period of oscillation is .................
→
$L, C$ and $R$ represent physical quantities inductance, capacitance and resistance. The combination which has the dimensions of frequency is
→
Following figure shows $P-T$ graph for four processes $A, B, C$ and $D$. Select the correct alternative
→
In ballistic galvanometer, the frame on which the coil is wound is non-metallic to
→
A square loop of side $15 \mathrm{~cm}$ being moved towards right at a constant speed of $2 \mathrm{~cm} / \mathrm{s}$ as shown in figure. The front edge enters the $50 \mathrm{~cm}$ wide magnetic field at $t=0$. The value of induced emf in the loop at $t=10 \mathrm{~s}$ will be :
→

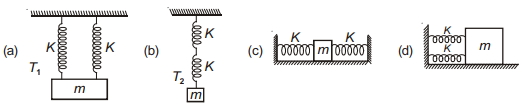

A mass $m$ is attached to two springs of same force constant $K$, as shown in following four arrangements. If $T_1, T_2, T_3$ and $T_4$ respectively be the time periods of oscillation in the following arrangements, in which case time period is maximum?
→
