Question
What is the radius of curvature of the parabola traced out by the projectile in the previous problem at a point where the particle velocity makes an angle $\frac{\theta}{2}$ with the horizontal?
✓
Answer
Let ‘u’ the velocity at the pt where it makes an angle $\frac{\theta}{2}$ with horizontal. The horizontal component remains unchanged So, $\text{v}\cos\frac{\theta}{2}=\omega\cos\theta$$\Rightarrow\text{v}=\frac{\text{u}\cos\theta}{\cos\Big(\frac{\theta}{2}\Big)}\ \dots(1)$
From figure
$\text{mg}\cos\Big(\frac{\theta}{2}\Big)=\frac{\text{mv}^2}{\text{r}}$
$\Rightarrow\text{r}=\frac{\text{v}^2}{\text{g}\cos\Big(\frac{\theta}{2}\Big)}$
putting the value of ‘v’ from equn(1)$\text{r}=\frac{\text{u}^2\cos^2\theta}{\text{g}\cos^3\Big(\frac{\theta}{2}\Big)}$
From figure
$\text{mg}\cos\Big(\frac{\theta}{2}\Big)=\frac{\text{mv}^2}{\text{r}}$
$\Rightarrow\text{r}=\frac{\text{v}^2}{\text{g}\cos\Big(\frac{\theta}{2}\Big)}$
putting the value of ‘v’ from equn(1)$\text{r}=\frac{\text{u}^2\cos^2\theta}{\text{g}\cos^3\Big(\frac{\theta}{2}\Big)}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A straight horizontal wire of mass 10mg and length 1.0m carries a current of 2.0A. What minimum magnetic field B should be applied in the region, so that the magnetic force on the wire may balance its weight?
The radius of a sphere is measured as $(2.1 \pm 0.5) \text{cm}$ calculate its surface area with error limits.
→Explain how momentum conservation explains explosion of a mass at rest.
In a $p-n$ junction, the depletion region is $400\ nm$ wide and an electric field of $5 \times 10^5V/m$ exists in it.
→- Find the height of the potential barrier.
- What should be the minimum kinetic energy of a conduction electron which can diffuse from the $n-$side to the $p-$side?
A constant force of 2.50N accelerates a stationary particle of mass 15g through a displacement of 2.50m. Find the work done and the average power delivered.
A function $\text{f}(\theta)$ is defined as:$\text{f}(\theta)=1-\theta+\frac{\theta^2}{2!}-\frac{\theta^3}{3!}+\frac{\theta^4}{4!}$
Why is it necessary for q to be a dimensionless quantity?
→Why is it necessary for q to be a dimensionless quantity?
Two vectors $\vec{\text{A}}$ and $\vec{\text{B}}$ are of equal lengths (A = B) and mutually perpendicular. Show by vector diagram that their vector sum $(\vec{\text{A}}+\vec{\text{B}})\text{s}$ and vector difference $(\vec{\text{A}}-\vec{\text{B}})$ will be of the same length and mutually perpendicular.
→A wheel of mass 10kg and radius 20cm is rotating at an angular speed of 100rev/min when the motor is turned off. Neglecting the friction at the axle, calculate the force that must be applied tangentially to the wheel to bring it to rest in 10 revolutions.
Differentiate between average and instantaneous velocity.

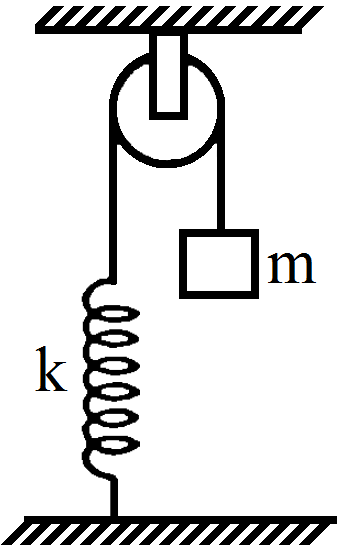

The string, the spring and the pulley shown in figure are light. Find the time period of the mass m.
