When an ac source of e.m.f. $e=E_0 \sin (100 t)$ is connected across a circuit, the phase difference between the e.m.f. $e$ and the current $i$ in the circuit is observed to be $\pi / 4$, as shown in the diagram. If the circuit consists possibly only of $R C$ or $L C$ in series, find the relationship between the two elements


  • ✓
    (a) $R=1 k \Omega, C=10 \mu F$
  • B
    (b) $R=1 k \Omega, C=1 \mu F$
  • C
    (c) $R=1 k \Omega, L=10 H$
  • D
    (d) $\quad R=1 k \Omega, L=1 H$
✓

Answer

Correct option: A.
(a) $R=1 k \Omega, C=10 \mu F$
(a) As the current $i$ leads the voltage by $\frac{\pi}{4}$, it is an $R C$ circuit, hence$\begin{aligned}& \tan \phi=\frac{X_C}{R} \Rightarrow \tan \frac{\pi}{4}=\frac{1}{\omega C R} \\& \Rightarrow \omega C R=1 \text { as } \omega=100 \mathrm{rad} / \mathrm{sec}\end{aligned}$$\Rightarrow C R=\frac{1}{100} \sec ^{-1} \text {. }$From all the given options only option (a) is correct.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "MCQ" from Alternating Current→Alternating Current — all question types→JEE physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

The length of a rod is $20 cm$ and area of cross -section $2 cm$. The Young's modulus of the material of wire is $1.4 \times 10^{11} N / m ^2$. If the rod is compressed by $5 kg$-wt along its length, then increase in the energy of the rod in joules will be
→
Ampere-hour is a unit of
→
A mass ' $m$ ' moves with a velocity ' $v$ ' and collides inelastically with another identical mass. After collision the lst mass moves with velocity $\frac{v}{\sqrt{3}}$ in a direction perpendicular to the initial direction of motion. Find the speed of the 2 mass after collision


→

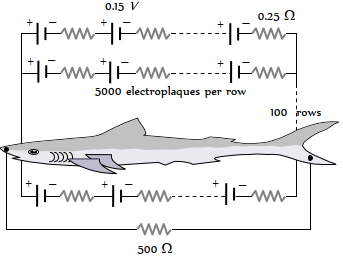

Eels are able to generate current with biological cells called electroplaques. The electroplaques in an eel are arranged in 100 rows, each row stretching horizontally along the body of the fish containing 5000 electroplaques. The arrangement is suggestively shown below. Each electroplaques has an emf of $0.15 \mathrm{~V}$ and internal resistance of $0.25 \Omega$

The water surrounding the eel completes a circuit between the head and its tail. If the water surrounding it has a resistance of $500 \Omega$ the current an eel can produce in water is about

→

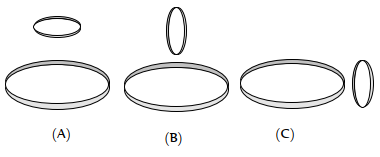

Two circular coils can be arranged in any of the three situations shown in the figure. Their mutual inductance will beImage
→
