Question
Which type of telescopes can be made using a concave mirror, convex mirror, plane mirror, and a lens? Draw diagrams of these telescopes.
✓
Answer

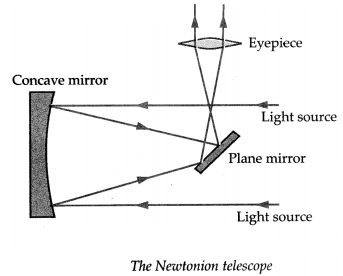

A Newtonian telescope can be made using a concave mirror, plane mirror and a lens.

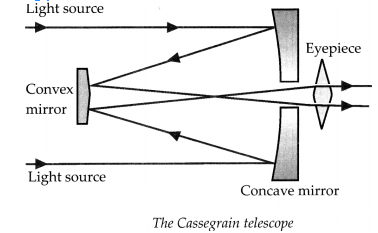

A Cassegrain telescope can be made using a convex mirror, concave mirror and a lens.

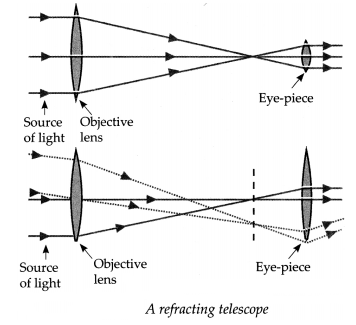

A refracting telescope can be made using two or more lenses.
