Question
Write a note on projectile motion.
✓
Answer
$1.$ An object in flight after being thrown with some velocity is called a projectile and its motion is called projectile motion.
$2.$ Example: A bullet fired from a gun, football kicked in air, a stone thrown obliquely in air etc.
$3.$ In projectile motion, the object is moving freely under the influence of Earth’s gravitational field.
$4.$ The projectile has two components of velocity, one in the horizontal i.e., along the $x-$direction and the other in the vertical i.e., along the $y-$direction.
$5.$ As acceleration due to gravity acts only along the vertically downward direction, the vertical component changes in accordance with the laws of motion with $a_x = 0$ and $a_y = -g.$
$6.$ As no force is acting in the horizontal direction, the horizontal component of velocity remains unchanged.
$[$Note: Retarding forces like air resistance etc. are neglected in projectile motion unless otherwise stated.$]$
$2.$ Example: A bullet fired from a gun, football kicked in air, a stone thrown obliquely in air etc.
$3.$ In projectile motion, the object is moving freely under the influence of Earth’s gravitational field.
$4.$ The projectile has two components of velocity, one in the horizontal i.e., along the $x-$direction and the other in the vertical i.e., along the $y-$direction.
$5.$ As acceleration due to gravity acts only along the vertically downward direction, the vertical component changes in accordance with the laws of motion with $a_x = 0$ and $a_y = -g.$
$6.$ As no force is acting in the horizontal direction, the horizontal component of velocity remains unchanged.
$[$Note: Retarding forces like air resistance etc. are neglected in projectile motion unless otherwise stated.$]$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A potential difference of $5000$ volt is applied between two parallel plates $5\ cm$ apart. A small oil drop having a charge of $9.6 \time 10-19 C$ falls between the plates. Find (i) electric field intensity between the plates and (ii) the force on the oil drop.
→If $n$ identical cells, each of emf $E$ and internal resistance $r,$ are connected in parallel, derive an expression for the current supplied by this combination to external resistance $R.$ Prove that the combination supplies current almost $n$ times the current supplied by a single cell, when the external resistance $R$ is much smaller than the internal resistance of the parallel combination of the cells.
→Explain working of a circuit when connected to emf device.
A particle is projected with speed v0 at angle θ to the horizontal on an inclined surface making an angle Φ (Φ < θ) to the horizontal. Find the range of the projectile along the inclined surface.
Two small spheres $18\ cm$ apart have equal negative charges and repel each other with the force of $6 \times 10^{-8} N$. Find the total charge on both spheres.
→Explain the importance of the depletion region in a p-n junction diode.
A simplified model of hydrogen atom consists of an electron revolving about a proton at a distance of $5.3 \times 10^{-11} m.$ The charge on a proton is $+1.6 \times 10^{-19} C.$ Calculate the intensity of the electric field due to proton at this distance. Also find the force between electron and proton.

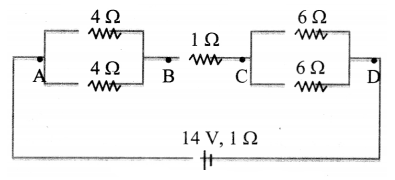

→A network of resistors is connected to a $14 V$ battery with internal resistance $1 Q$ as shown in the circuit diagram.
