Question
Write a note on reaction between Gibbs free energy and cell potential for cell reaction.
✓
Answer
$\rightarrow$ Electrical work done in one second is equal to electrical potential multiplied by total charge passed.
$\rightarrow$ If we want to obtain maximum work from a galvanic cell then charge has to be passed reversibly.
$\rightarrow$ The reversible work done by a galvanic cell is equal to decrease in its Gibbs energy.
$\rightarrow$ If the $\text{EMF}$ of the cell is $E$ and $nF$ is the amount of charge passed and $\Delta_{ r } G$ is the Gibbs energy of the reaction, $\Delta_{ r } G =- nF E_{\text {cell }}$
$\rightarrow E ($cell$)$ is an intensive parameter but $\Delta_{ r } G$ is an extensive thermodynamic property and the value depends on $n$ .
$Zn ( s )+ Cu ^{2+}( aq ) \rightarrow Zn ^{2+}( aq )+ Cu ( s )$
$\Delta_{ r } G =-2 FE _{\text {(cell) }}$
but when we write the reaction
$2 Zn ( s )+2 Cu ^{2+}( aq ) \rightarrow 2 Zn ^{2+}( aq )+2 Cu ( s )$
$\Delta_{ r } G =-4 FE _{\text {(cell) }}$
$\rightarrow$ If the concentration of all the reacting species is unity
$\Delta_{ r } G ^{\ominus}=- nF E _{\text {(cell) }}^{\ominus}$
$\rightarrow$ We can calculate Equilibrium constant from the value of $\Delta_r G^{\ominus}$
Where, $ \Delta_{ r } G ^{\ominus}=- RT \ln K =-2.303 RT \log K$
$\Delta G ^{\ominus}=$ Change in gibbs free energy
$R =$ Gas constant
$T =$ Temperature
$K =$ Equilibrium constant
$\rightarrow$ If we want to obtain maximum work from a galvanic cell then charge has to be passed reversibly.
$\rightarrow$ The reversible work done by a galvanic cell is equal to decrease in its Gibbs energy.
$\rightarrow$ If the $\text{EMF}$ of the cell is $E$ and $nF$ is the amount of charge passed and $\Delta_{ r } G$ is the Gibbs energy of the reaction, $\Delta_{ r } G =- nF E_{\text {cell }}$
$\rightarrow E ($cell$)$ is an intensive parameter but $\Delta_{ r } G$ is an extensive thermodynamic property and the value depends on $n$ .
$Zn ( s )+ Cu ^{2+}( aq ) \rightarrow Zn ^{2+}( aq )+ Cu ( s )$
$\Delta_{ r } G =-2 FE _{\text {(cell) }}$
but when we write the reaction
$2 Zn ( s )+2 Cu ^{2+}( aq ) \rightarrow 2 Zn ^{2+}( aq )+2 Cu ( s )$
$\Delta_{ r } G =-4 FE _{\text {(cell) }}$
$\rightarrow$ If the concentration of all the reacting species is unity
$\Delta_{ r } G ^{\ominus}=- nF E _{\text {(cell) }}^{\ominus}$
$\rightarrow$ We can calculate Equilibrium constant from the value of $\Delta_r G^{\ominus}$
Where, $ \Delta_{ r } G ^{\ominus}=- RT \ln K =-2.303 RT \log K$
$\Delta G ^{\ominus}=$ Change in gibbs free energy
$R =$ Gas constant
$T =$ Temperature
$K =$ Equilibrium constant
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Write a note on solubility of carboxylic acids,
Answer the following questions:
Illustrate the following reactions:
Illustrate the following reactions:
- Hoffmann bromamide degradation reaction.
- Coupling reaction.
State Raoult’s law for a solution containing volatile components. Write two characteristics of the solution which obeys Raoult’s law at all concentrations.
Compound (A) is formed when benzene diazonium chloride is mixed with KI solution. Compound (B) is formed when ( A ) reacts with sodium in the presence of dry ether. Write the names of (A) and (B) and the equations of the chemical reactions involved.
Match the reactions given in Column $I$ with the names given in Column $II.$
→| Column $I$ | Column $II$ | ||

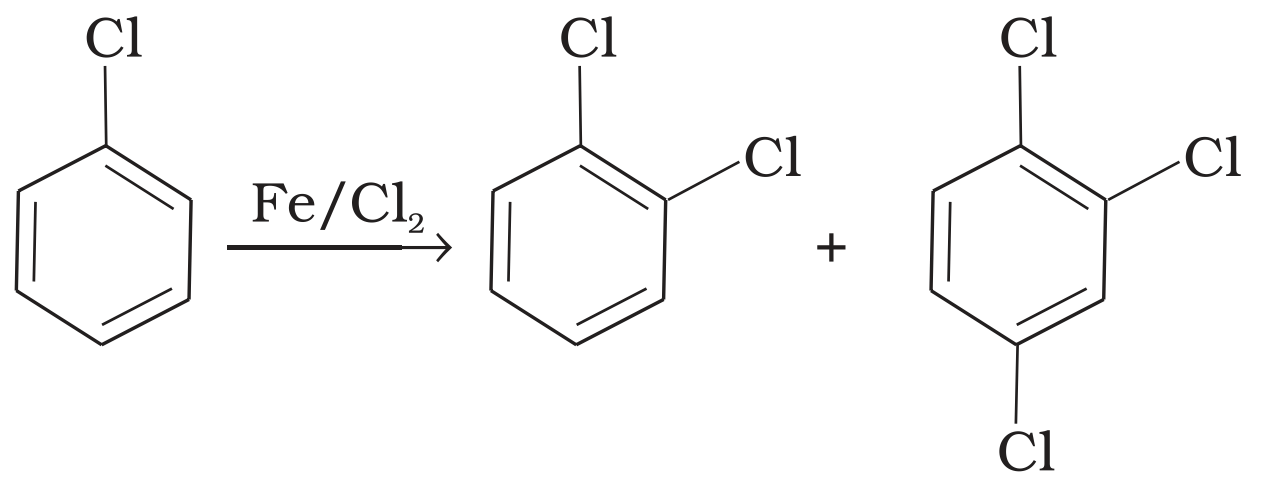

| $(i)$ |  |
$(a)$ | Nucleophilic aromatic substitution |
| $(ii)$ | $\text{CH}_3-\text{CH}==\text{CH}_2+\text{HBr}\xrightarrow{ \ \ \ \ \ }\text{CH}_3-\text{CH}-\text{CH}_3\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ | \ \ \ \ \ \ \ \ \ \ \ \text{Br}$ | $(b)$ | Electrophilic aromatic substitution |

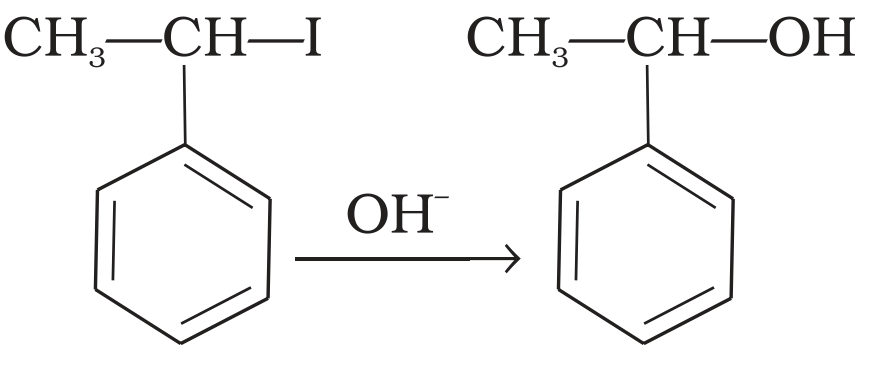

| $(iii)$ |  |
$(c)$ | Saytzeff elimination |

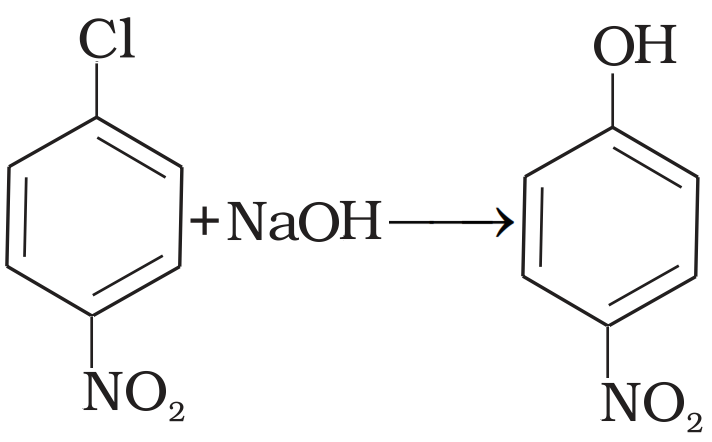

| $(iv)$ |  |
