Question
Write down the difference between series and parallel connection of capacitors
✓
Answer
| Series Connection | Parallel Connection |
| 1. Charge on each capacitor is same. | Charge on each capacitor is different. |
| 2. p.d. across two terminals of each capacitor is different | p.d. across two terminals of each capacitor is same. |
| 3. Equivalent capacitance of series connection $\frac{1}{C}=\frac{1}{C_1}+\frac{1}{C_2}+\frac{1}{C_3}+\ldots$ | Equivalent capacitance for parallel connection $C = C _1+ C _2+ C _3+\ldots$ |
| 4. Value of equivalent capacitance is smaller than the smallest capacitance | Value of equivalent capacitance is more than the largest (/ greatest) capacitance |
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A particle of mass 0.3kg is subjected to a force F = -kx with k = 15N/m. What will be its initial acceleration if it is released from a point x = 20cm?
A ray of light passing through an equilateral triangular glass prism from air undergoes minimum deviation when angle of incidence is 3/4th of the angle of the prism. Calculate the speed of light in the prism.
Whether the diffraction effects from a slit will be more clearly visible or less clearly, if the slit-width is increased?

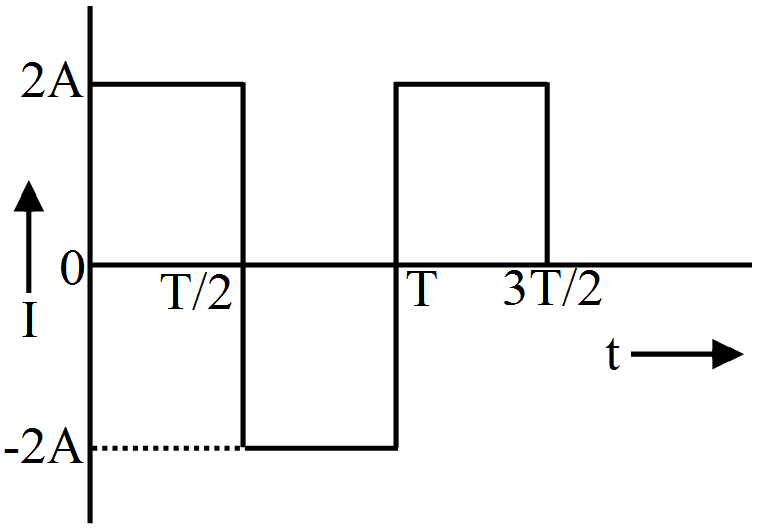

What is the rms value of alternating current shown in figure?
