Write limitations of Ohm's law.

✓

Answer

For certain materials and devices used in day to day life, voltage (V) and current (I) are not proportional to each other. So in such cases Ohm's law is not obeyed.

(a) V and I are not proportional to each other.
In graph, dotted line part shows that Ohm's law is obeyed, where as continuous curve of the graph shows that Ohm's law is not obeyed.
$\rightarrow $ When current flows through conductor, Joule heat is produced. Hence, when conductor is heated, its resistance increases. Hence, for such materials V and I graph will be continuous curve.
Example : Diode, Transistor.

(b) Relation between I and V depend on polarity of V . Hence, for same positive or negative values of voltage, different current values are obtained.
Example : PN junction diode.
$\rightarrow$ In graph shown for positive and negative value of voltage and current, scales are different.

(c) I and V relation is not one-one function. For one value of current there are more than one values of voltage. For example, GaAs exhibit such behaviour.
$\rightarrow$ AV Figure shows $I \rightarrow V$ graph for GaAs. In such graph, $\frac{\Delta V }{\Delta I }$ is used to obtain resistance.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from Model Paper 1→Model Paper 1 — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

An optical fibre $(\mu=1.72)$ is surrounded by a glass coating $(\mu=1.50).$ Find the critical angle for total internal/ reflection at the fibre-glass interface.

A block of mass 2kg placed on a long frictionless horizontal table is pulled horizontally by a constant force F. It is found to move 10m in the first two seconds. Find the magnitude of F.

A and B are two conducting spheres of equal radius, in which sphere $A$ is solid and sphere $B$ is hollow. Both are charged to the same potential. What will be the relation between the charges on both the spheres?

Can a virtual image be photographed by a camera?

Define the SI unit of the magnetic field.

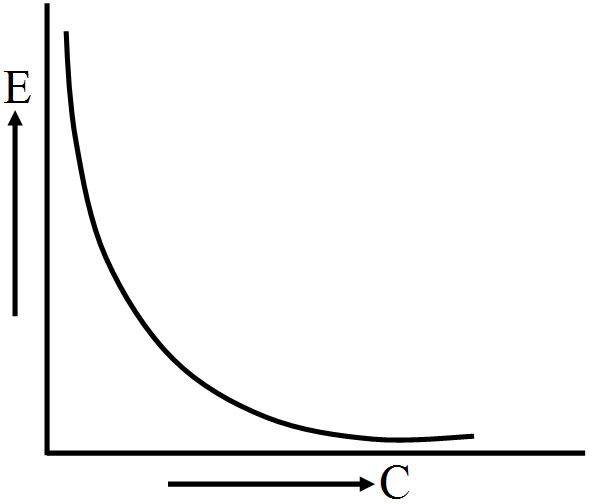

The graph shown here shows the variation of total energy (E) stored in a capacitor against the value of the capacitance (C) itself. Which of the two: the charge on capacitor or the potential used to charge it, is kept constant for this graph?
