Questions

questions in short. [3 marks ]

🎯

Test yourself on this topic

33 questions · timed · auto-graded

Question 13 Marks
Explain why a charged balloon is repelled by another charged balloon whereas an uncharged balloon is attracted by another charged balloon?
Answer
In first case, a charged balloon repels another charged balloon as both have like charges and like charges repel each other. In second condition, an uncharged balloon gets attracted towards a charged balloon because the charged balloon induces opposite charge on it. This process of inducing charge on an uncharged body by bringing it close to a charged body is known as induction.
View full question & answer
Question 23 Marks
Suggest three measures to protect ourselves from lightning.
Answer
Following are three measures to protect ourselves from lightning:
$i.$ If travelling by car or by bus, shut the windows and doors.
$ii.$ Stay away from poles, metal objects, telephone cords, wires, etc.
$iii.$ Do not lie on the ground. Instead, squat low on the ground.
View full question & answer
Question 33 Marks
Name the scale on which the destructive energy of an earthquake is measured. An earthquake measures $3$ on this scale. Would it be recorded by a seismograph? Is it likely to cause much damage?
Answer
The destructive energy of an earthquake is measured by the Richter scale. This scale has the readings from $1$ to $10.$
The reading of magnitude $3$ on the Richter scale would be recorded by a seismograph.
If the Richter scale gives a reading of magnitude $3$, then the earthquake is not likely to cause much damage. Generally, earthquake of magnitudes higher than $5$ is considered destructive in nature.
View full question & answer
Question 43 Marks

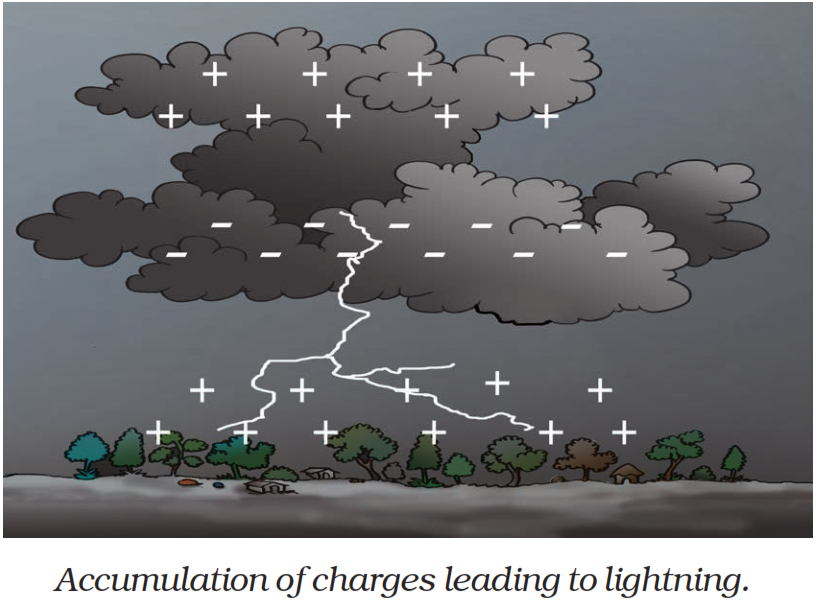

How does lightning take place in the clouds?
Answer
During a thunderstorm, the air currents move upwards and the water droplets move downwards. And this caused the separation of charge due to this vigorous motion. As a result of this process, the positive charges collect near the upper edge and the negative charges accumulate near the lower edge of the cloud and also near the ground. As the charge gets accumulated, its magnitude becomes very large. Water droplets in the air act as a conductor of this charge. These charges flow to meet, thus producing strikes of lightning as shown in the figure below.
View full question & answer
Question 53 Marks

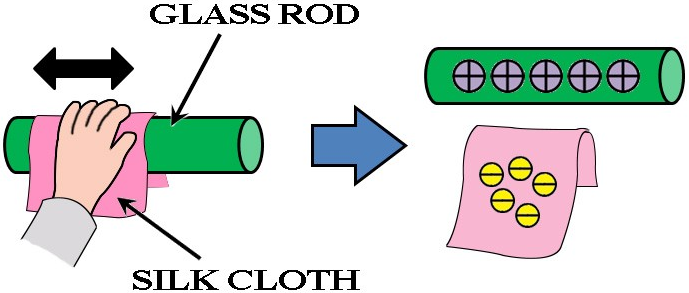

A glass rod is rubbed with a silk cloth and an inflated rubber balloon is rubbed with a woolen cloth. Out of glass rod, inflated rubber, silk cloth and woolen cloth.
$i.$ Mention the name of two objects acquires a negative charge. Why?
$ii.$ Mention the name of two objects acquires a positive charge. Why?
Answer
$i.$ The silk cloth and woolen cloth becomes negatively charged because when an object is charged by rubbing against another object the two objects gets oppositely charged. And by convention, it is considered that charge acquired by cloth is negative. The figure below illustrates more.

$ii.$ The glass rod and balloon becomes positively charged due to this when two balloons rubbed with the woolen cloth are brought close to each other repel each other as shown in the figure below.
View full question & answer
Question 63 Marks

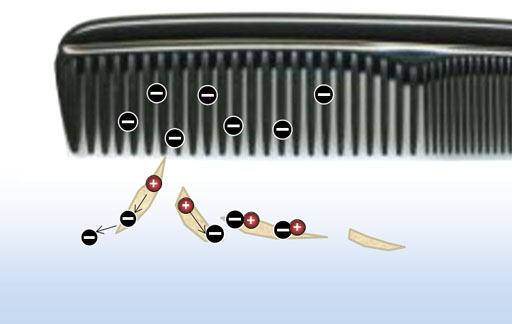

Explain, why when a plastic comb is rubbed with hair then it attracts tiny pieces of papers.
Answer
This occurs due to electrostatic charge means the charges which are at rest. When the comb is rubbed with hair it gets charged, and when the comb is brought near the neutral paper strips than within the papers strips, the electrons get either repelled or attracted according to whether the comb has a negative or a positive charge. This makes the paper strips have an unlike charge in the direction of the comb, and makes them to get attracted towards the comb as shown in the figure below.
View full question & answer
Question 73 Marks
An earthquake measures $2$ on the Ritcher scale, would it be recorded by seismograph?
Answer
The Richter scale measures the intensity of the earthquake on the scale of $1-10$. A measure of $2$ means that the earthquake is very minor and almost no loss has been there. It will not be recorded by the seismograph because the intensity or tectonic movements of plates is very less.
View full question & answer
Question 83 Marks

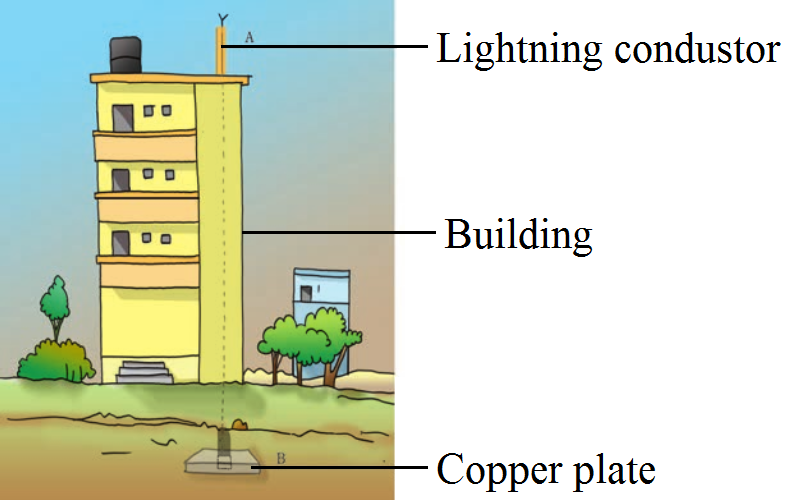

Identify the lightning conductor and the copper plate in Fig.
Answer
Lightning conductor $(A)$ is a metallic rod taller then the building, installed in the walls of the building and is connected to the copper plate $(S)$, buried deep in the ground, as shown in figure.
View full question & answer
Question 93 Marks
Briefly, explain how lightning occurs.
Answer
The formation of clouds involves friction between water droplets in the atmosphere. The friction charges the particles in the atmosphere. Among the positive and negative charges, the negative charges accumulate at the bottom of the cloud and the positive charges at the top. As the accumulation of the charges increases, the cloud will induce positive charges on the ground nearby. As the number of charge increases, the negative charges on the cloud tend to make a path towards the ground, and it results in a narrow streak of electrical discharge, which we call lightning. The figure below shows the lightning.
View full question & answer
Question 103 Marks
For what purpose lightning conductor is used in the buildings.
Answer
A lightning rod, also known as a lightning conductor, is a building safety device designed for the sole purpose of stopping lightning from hitting a building. It is made of good conductors like copper and permits the lightning bolt's electrical energy to go harmlessly to ground where it belongs. All tall buildings now have lightning conductors. The figure below shows the lightning conductor.
View full question & answer
Question 113 Marks

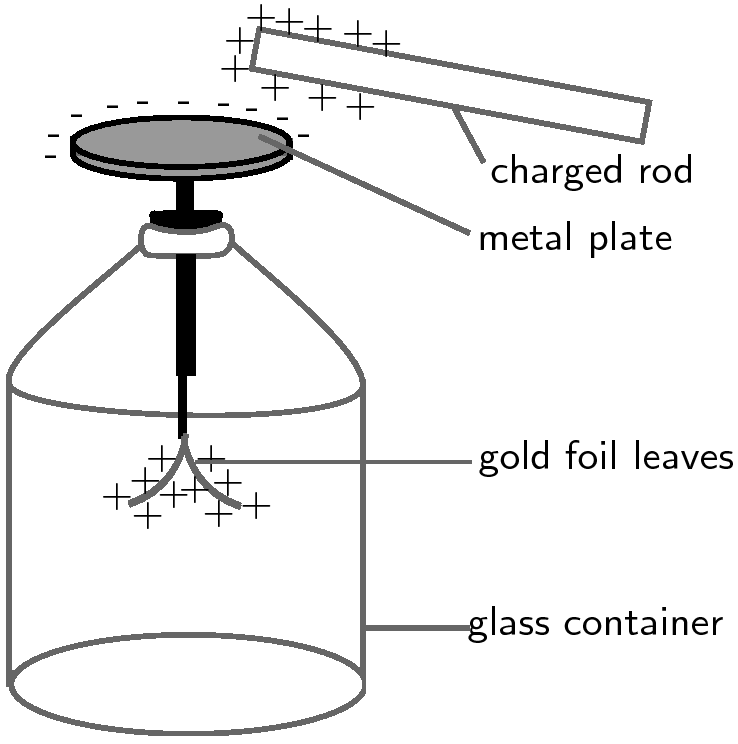

How will you find out whether an object is charged or not?
Answer
In order to find out if an object is charged or not, we can test it by using an electroscope.
$i.$ When the object is touched with the metal cap of an electroscope, both the metal cap and the leaves acquire the charge due to conduction. As a result of.
$ii.$  As a result of both, the leaves of the electroscope will have the same charge. It will cause the leaves to diverge showing that the object was charged,
as shown in the pic:
View full question & answer
Question 123 Marks

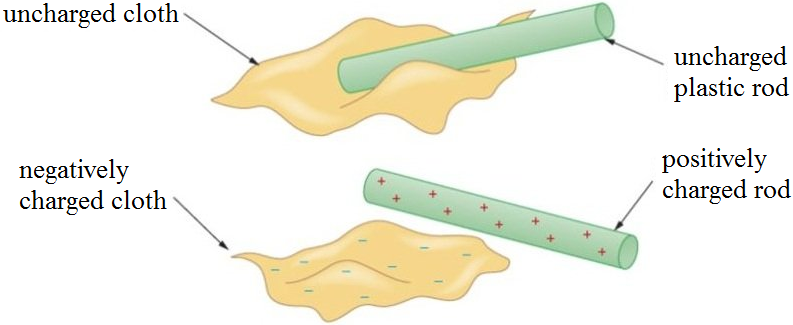

Define electrification by friction.
Answer
In normal condition the number of protons and electrons in any atom is equal. But every atom has got an affinity for getting excess electrons. Due to it when two bodies are brought in contact with each other, the body which has a greater affinity for electron collect electrons from other body and gets charged negatively this is called as electrification by friction.Example: When a glass rod is rubbed with silk, Silk gets negatively charged and glass rod gets positively charged. As shown in the figure below.
View full question & answer
Question 133 Marks
Give an application for earthing.
Answer
Earthing is the proper connection of the exposed metal parts of an electric circuit to the ground. It is accomplished by thick copper wires its application is as follows.
$i.$ It protects the appliances and the human beings in case of insulation fail or accidental short circuit.
$ii.$ It acts as the circuit breaker when the live wire touches the earth wire, and a large current flows through it.
$iii.$ Lightning conductor uses Earthing During lightning metal rod is connected to the heavy metal plate to protect the building and people inside it from the electric discharge as shown in the figure below.
View full question & answer
Question 143 Marks

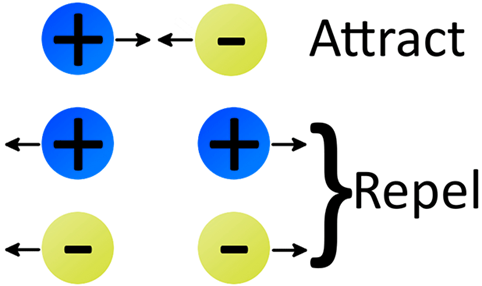

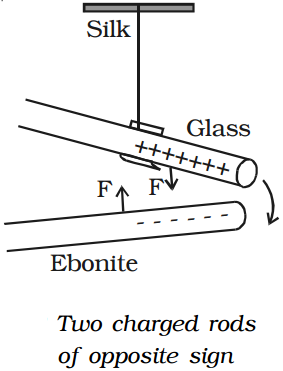

Explain what happens when a positive charge is kept near a negative charge?
Answer
When a positive charge is kept near a negative charge then there will be an attraction between the positive and negative charge because unlike charges attract each other. For example: When an ebonite rod and glass rod are brought close to each other there will be an attraction as shown in the figure below. A charged glass rod attracts a charged plastic straw.
View full question & answer
Question 153 Marks
You might have observed on a dry day that when you touch the screen of a television or computer monitor (with picture tube), you get a slight shock. Why does it happen?
Answer
It happens because the television screen or computer monitor are charged and have static charges accumulated on them and when we touch them with our hands which are uncharged, the charges transfer through our hands and we get a slight shock.
View full question & answer
Question 163 Marks
Mention three precautions that you will take to protect yourself if earthquake strikes when you are inside the house.
Answer
Three precautions that we should take if we are inside the house during an earthquake.
$i.$ We should get under a table or a desk and stay there till the shaking stops.
$ii.$ We should pick a safe place where tall and heavy things may not fall on us.
$iii.$ If we are in bed, then we should not get up and protect our head with a pillow.
View full question & answer
Question 173 Marks
If air and cloud were good conductors of electricity, do you think lightning could occur? Explain.
Answer
No, there will not be any lightning at all because charge separation cannot take place in conductors.So, all the charges collected at the clouds will continuously transfer through air, i.e. charge will not accumulate on cloud and so, there will be no lightning.
View full question & answer
Question 183 Marks
Is it possible to predict the occurrence of an earthquake?
Answer
No, scientists have tried lots of different ways of predicting earthquake but none have been successful so far. They have a pretty good idea of where an earthquake is most likely to hit but they still cannot tell exactly when it will happen.
View full question & answer
Question 193 Marks
What precautions would you take to protect yourself during an earthquake if you are inside the house?
Answer
We must protect ourselves in the following ways:
$-$We must take shelter under the table and should stay until the shaking stops.
$-$We must stay away from the heavy objects to avoid them to fall on us.
$-$If we are in bed we must stay in it and should protect our head with a pillow.
View full question & answer
Question 203 Marks
Explaining briefly about seismic zones.
Answer
The Geological Survey of India $(\text{G.S.I})$ first published the seismic zoning map of India in the year $1935$. This map tells us about the earthquake- prone areas in India. The Map is colour coded in a different colour which shows four different seismic zones of India.
They are as follows:
Zone – II: This is the least active seismic zone.
Zone – III: It is included in the moderate seismic zone.
Zone – IV: This is considered to be high seismic zone.
Zone – V: It is the highest seismic zone.

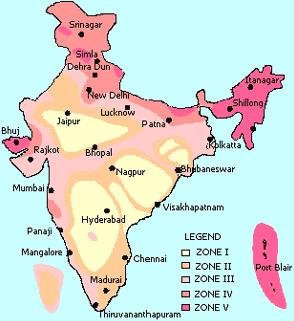

The Map Below shows the Seismic Zones of India.
View full question & answer
Question 213 Marks
Explain giving examples of the concept of lightning.
Answer
A very quick electrical discharge that occurs between a cloud and the ground, between two clouds or within the clouds is called lightning. It can be seen as bright flash and is followed by the sound of the thunder. The figure below shows the lightning between the cloud and ground.

The lightning frequency on earth is about $40-50$ times a second. The positive charges collect near the upper edge and the negative charges accumulate near the lower edge of the cloud and also near the ground. As the charge gets accumulated, its magnitude becomes very large and lightning occurs.
View full question & answer
Question 223 Marks
Explain why, a glass rod can be charged by rubbing when held by hand but an iron rod cannot be charged by rubbing, if held by hand.
Answer
The electric charges generated by rubbing are static electric charges. These electric charges remain bound on the surface of the charged object. When a glass rod is rubbed with silk, some of the electrons from the glass atoms are transferred to silk. Due to the deficiency of electrons in the glass atoms, it becomes positively charged. Whereas the silk has acquired electrons, it becomes negatively charged. Iron rod is a conductor. As soon as we charge an iron rod by rubbing with another material, the electric charge flow through our hand and body and flows into the earth. As a result, the iron rod remains un-charged by rubbing, if held by hand.
View full question & answer
Question 233 Marks

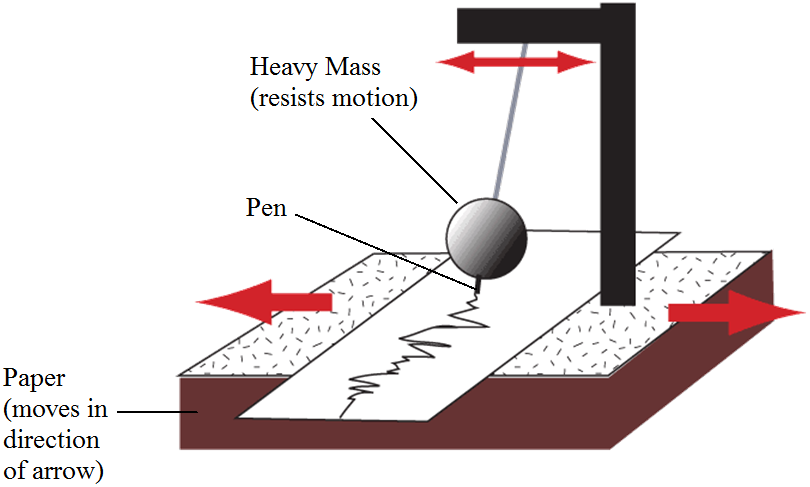

Name the device that is used to measure the strength of an earthquake.
Answer
The seismograph is an instrument that measures seismic waves caused by an earthquake. It consists of a vibrating rod, or a pendulum, which starts vibrating when tremors occur and A pen (stylus) which records the seismic waves on a paper. The figure below shows the typical seismograph.

The strength, or magnitude, of an earthquake, is measured using the Richter scale. The Richter scale is numbered $0-10.$
View full question & answer
Question 243 Marks
What are the various effects of an earthquake?
Answer
The various effects of earthquakes are following:
$-$Earthquakes can cause immense damage to buildings, bridges, dams and people.
$-$There can be a great loss to life and property.
$-$The earthquakes can cause floods, landslides and tsunamis.
View full question & answer
Question 253 Marks
Explain why, sometimes when we take off the woolen sweater in a dark room, we can see tiny sparks of light and hear a cracking sound.
Answer
The crackling sound and the tiny sparks of light re-noticed due to electric discharge between sweater and body. The sweater is made up of wool and the shirt we wear is made up of cotton blended with some synthetic fibres. When we take out the sweater the friction is developed and the transfer of electrons take place from shirt to sweater, this results in the building of electric potential. When enough potential has been accumulated while taking off the sweater it discharges and transfer of electrons take place. This transfer of electrons forms spark and let out sound energy and heat energy. Thus we hear the crackling sound and see the tiny sparks of light in the dark room.
View full question & answer
Question 263 Marks
If the materials used for constructing a building were good conductors, do you think lightning will strike the building?
Answer
Lightning will not strike the building because charge separation cannot take place in conductors and so, all the lightning falling on the building will reside on the surface of the building and will pass to the ground through the conductor. So, there is no need of installing any lightning conductor because all the work of a lightning conductor is done by the conducting material itself.
View full question & answer
Question 273 Marks
What will you observe when the metal top of an electroscope is touched with:
$i.$ A positively charged object?
$ii.$ A negatively charged object?
Answer
$i.$ When a glass rod is rubbed with a silk cloth, it acquires positive charge. When it is touched with the metal top of an electroscope, both the metal top and leaves acquires a positive charge due to conduction. As a result of the positive charge on both the leaves, the divergence of leaves takes place.
$ii.$ After rubbing the plastic comb, it acquires negative charge. When it is touched with the metal cap of an electroscope, both the metal cap and the leaves acquire negative charge due to conduction. As a result of negative charge on both the leaves, divergence of leaves takes place.
View full question & answer
Question 283 Marks
What precautions should we take during an earthquake if we are outside?
Answer
Some of the precautions that we will take to protect ourselves are as follows:
$i.$ Move to an open area away from tall buildings, tall trees, electric wires and poles. As shown in the figure below.
$ii.$ If you are travelling in a bus or car than ask the driver to drive in an open field away from bridges and tall trees. The figure below depicts the same. As shown in the figure below.

$iii.$ If you are travelling in a vehicle than remain inside the vehicle.
$iv.$ Do not go to the crowded place.
View full question & answer
Question 293 Marks
Name the scale on which the magnitude (or intensity) of an earthquake is expressed.
Answer
There are a number of ways to measure the magnitude of an earthquake. But, the Richter magnitude scale (often shortened to Richter scale) is the most common standard of measurement for earthquakes. The Richter scale is used to rate the magnitude of an earthquake, that is the amount of energy released during an earthquake.
Richter magnitude
Earthquake effects
$0-2$
Not felt by people
$2-3$
Felt little by people
$3-4$
Ceiling lights swing
$4-5$
Walls crack
$5-6$
Furniture moves
$6-7$
Some buildings collapse
$7-8$
Many buildings destroyed
$8-$Up
Total destruction of buildings, bridges and roads
View full question & answer
Question 303 Marks
State how many types of charges are there. Give their names.
Answer
There are mainly two type of charges namely Positive Charge and Negative Charge.
Positive Charge: When an electron is removed from the object it makes an object deficient of electrons and the object acquires the positive charge.
Negative Charge: When electrons are added to an object it gives the excess of electrons to it and makes it negatively charged.
When the number of positive and negative charges are equal than the object is said to be neutral.
View full question & answer
Question 313 Marks
We should use mobile phones rather than landline phones during a thunderstorm. Give reasons.
Answer
The following reasons are:
$i.$ The cables used in landline connection are the good conductors of electricity, hence the charge may flow through it and we may get an electric shock.
$ii.$ The mobile phones send signals through the air which prevents the charges to flow through our body.
$iii.$ Also during a thunderstorm the telephones lines may get destroyed due to which there will be an interruption in communicating with the person.
View full question & answer
Question 323 Marks
Briefly, explain how the charge can be detected with the help of an electroscope.
Answer
An Electroscope is an instrument which can be used to detect whether a body is charged or not. The following figure shows the simple Electroscope.
Construction: An electroscope has a brass rod passing through a tight fitting cork in a glass bottle. A pair of thin gold leaves is attached to the lower end of the brass rod. To protect the gold leaves from an external electric charge the lower half of the bottle is lined with tin foil which is ‘earthed’ by connecting it to the table. Working: When a charged rod is touched to the metal disc, the charge is transferred to the gold leaves and they diverge.
View full question & answer
Question 333 Marks

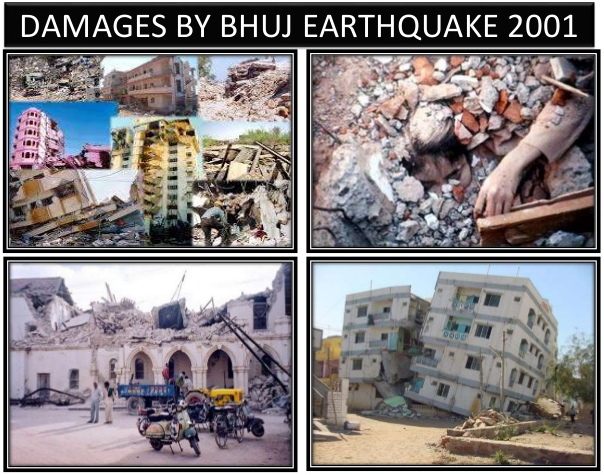

Give the name of two places in India where the earthquake causes the large destruction to life and property.
Answer
The places in India where the earthquake causes the large destruction to life and property are as follows.
Jammu and Kashmir: Major earthquake occurred on $8^{th}$ October $2005$ in Uri and Tangdhar towns of North Kashmir
Gujarat: Major earthquake occurred on $26^{th}$ January $2001$. In Bhuj District of Gujarat.
View full question & answer
