2 Marks Questions

Question 512 Marks

Whether the diffraction effects from a slit will be more clearly visible or less clearly, if the slit-width is increased?

Answer

The width of the central band is inversely proportional to the slit Width. So, as the width of the slit is increased, the central band will become less wider and further bands will start merging in them. Hence, diffraction effects will be visible less clearly.

View full question & answer→

Question 522 Marks

The wavelength of light in a medium is $\lambda=\frac{\lambda_0}{\mu},$ where $\lambda$ is the wavelength in vacuum. A beam of red light $(\lambda_0=720\text{nm})$ enters into water. The wavelength in water is $\lambda=\frac{\lambda_0}{\mu}=540\text{nm}.$ To a person under water does this light appear green?

Answer

Colour of light will depend only on the frequency of light and not on the wavelength of the light. So, light will appear red to an observer under water.

View full question & answer→

Question 532 Marks

A soap film of thickness 0.0011mm appears dark when seen by the reflected light of wavelength 580nm. What is the index of refraction of the soap solution, if it is known to be between 1.2 and 1.5?

Answer

Given, $\text{d}=0.0011\times10^{-3}\text{m}$
For minimum reflection of light, $2\mu\text{d}=\text{n}\lambda$
$\Rightarrow\mu=\frac{\text{n}\lambda}{2\text{d}}=\frac{2\text{n}\lambda}{4\text{d}}=\frac{580\times10^{-9}\times2\text{n}}{4\times11\times10^{-7}}$ $=\frac{5.8}{44}(2\text{n})=0.132(2\text{n})$
Given that, $\mu$ has a value in between 1.2 and 1.5.
⇒ When, $\text{n}=5,\mu=0.132\times10=1.32.$

View full question & answer→

Question 542 Marks

Light of wavelength 560nm goes through a pinhole of diameter 0.20mm and falls on a wall at a distance of 2.00m. What will be the radius of the central bright spot formed on the wall?

Answer

$\lambda=560\text{nm}=560\times10^{-9}\text{m},$ $\text{b}=0.20\text{mm}=2\times10^{-4}\text{m},\text{D}=2\text{m}$
Since, $\text{R}=1.22\frac{\lambda\text{D}}{\text{b}}=1.22\times\frac{560\times10^{-9}\times2}{2\times10^{-4}}$ $=6.832\times10^{-3}\text{M}=0.683\text{cm}.$
So, diameter $=2\text{R}=1.37\text{cm}.$

View full question & answer→

Question 552 Marks

A long narrow horizontal slit is placed 1mm above a horizontal plane mirror. The interference between the light coming directly from the slit and that after reflection is seen on a screen 1.0m away from the slit. Find the fringe-width if the light used has a wavelength of 700nm.

Answer

Given that, D = 1m, $\lambda=700\text{nm}=700\times10^{-9}\text{m}$
Since, a = 2mm, d = 2a = 2mm = 2 × 10^-3m (L loyd’s mirror experiment)
Fringe width $=\frac{\lambda\text{D}}{\text{d}}=\frac{700\times10^{-9}\text{m}\times1\text{m}}{2\times10^{-3}\text{m}}=0.35\text{mm}.$

View full question & answer→

Question 562 Marks

Two transparent slabs having equal thickness but different refractive indices $\mu_1$ and $\mu_2$ are pasted side by side to form a composite slab. This slab is placed just after the double slit in a Young's experiment so that the light from one slit goes through one material and the light from the other slit goes through the other material. What should be the minimum thickness of the slab so that there is a minimum at the point P₀ which is equidistant from the slits?

Answer

The change in path difference due to the two slabs is $(\mu_1-\mu_2)\text{t}$ (as in problem no. 16).
For having a minimum at P₀, the path difference should change by $\frac{\lambda}{2}.$
So, $\Rightarrow\frac{\lambda}{2}=(\mu_1-\mu_2)\text{t}\Rightarrow\text{t}=\frac{\lambda}{2(\mu_1-\mu_2)}.$

View full question & answer→

Question 572 Marks

Can two identical and independent sodium lamps act as coherent sources? Give reason for your answer.

Answer

No, two independent sources of light cannot act as coherent sources.
Reason: The emission of light is due to millions of atoms. So phase difference between waves emitted from these atoms will change randomly and sustained interference will not be obtained.

View full question & answer→

Question 582 Marks

A Young's double slit apparatus has slits separated by 0.28mm and a screen 48cm away from the slits. The whole apparatus is immersed in water and the slits are illuminated by the red light ($\lambda=700\text{nm}$ in vacuum). Find the fringe-width of the pattern formed on the screen.

Answer

Given that, d = 0.28mm = 0.28 × 10^-3m, D = 48cm = 0.48m, $\lambda_\text{a}=700\text{nm}$ in vacuum
Let, $\lambda_\text{w}$ = wavelength of red light in water
Since, the fringe width of the pattern is given by,
$\beta=\frac{\lambda_\text{w}\text{D}}{\text{d}}$
$=\frac{525\times10^{-9}\times0.48}{0.28\times10^{-3}}=9\times10^{-4}\text{m}=0.90\text{mm}.$

View full question & answer→

Question 592 Marks

Does the polarising angle for any transparent medium depend on the wavelength of light?

Answer

Yes, Reason: Angle of polarisation $\text{i}_\text{B}=\tan^{-1}(\text{n})$ and since refractive index varies as inverse of square of wavelength so angle of polarisation decreases with increase of wavelength.

View full question & answer→

Question 602 Marks

If we put a cardboard (say 20cm × 20cm) between a light source and our eyes, we can't see the light. But when we put the same cardboard between a sound source and our ear, we hear the sound almost clearly. Explain.

Answer

Light waves have the property of travelling in a straight line, unlike sound waves. When we put a cardboard between the light source and our eyes, the light waves are obstructed by the cardboard and cannot reach our eyes, which doesn't happen when the cardboard is inserted between sound source and our ear.

View full question & answer→

Question 612 Marks

The speed of the yellow light in a certain liquid is 2.4 × 10⁸m/s. Find the refractive index of the liquid.

Answer

$\mu_\text{t}=\frac{1\times3\times10^8}{(2.4)\times10^8}=1.25$ $\Big[\text{since}, \mu=\frac{\text{velocity of light in vaccum}}{\text{velocity of light in the given medium}}\Big]$

View full question & answer→

Question 622 Marks

Can we conclude from the interference phenomenon whether light is a transverse wave or a longitudinal wave?

Answer

The interference pattern can be produced by any two coherent waves moving in the same direction. It cannot be concluded from the interference phenomenon that light is a transverse wave, as sound waves that are longitudinal in nature also interfere.

View full question & answer→

Question 632 Marks

A plate of thickness t made of a material of refractive index $\mu$ is placed in front of one of the slits in a double slit experiment.

Find the change in the optical path due to introduction of the plate.
What should be the minimum thickness t which will make the intensity at the centre of the fringe pattern zero? Wavelength of the light used is $\lambda$. Neglect any absorption of light in the plate.

Answer

Change in the optical path $=\mu\text{t}-\text{t}=(\mu-1)\text{t}$
To have a dark fringe at the centre the pattern should shift by one half of a fringe.

$\Rightarrow(\mu-1)\text{t}=\frac{\lambda}{2}\Rightarrow\text{t}=\frac{\lambda}{2(\mu-1)}$

View full question & answer→

Question 642 Marks

A parallel beam of monochromatic light is used in a Young's double slit experiment. The slits are separated by a distance d and the screen is placed parallel to the plane of the slits. Show that if the incident beam makes an angle $\theta=\sin^{-1}\Big(\frac{\lambda}{2\text{D}}\Big)$ with the normal to the plane of the slits, there will be a dark fringe at the centre P₀ of the pattern.

Answer

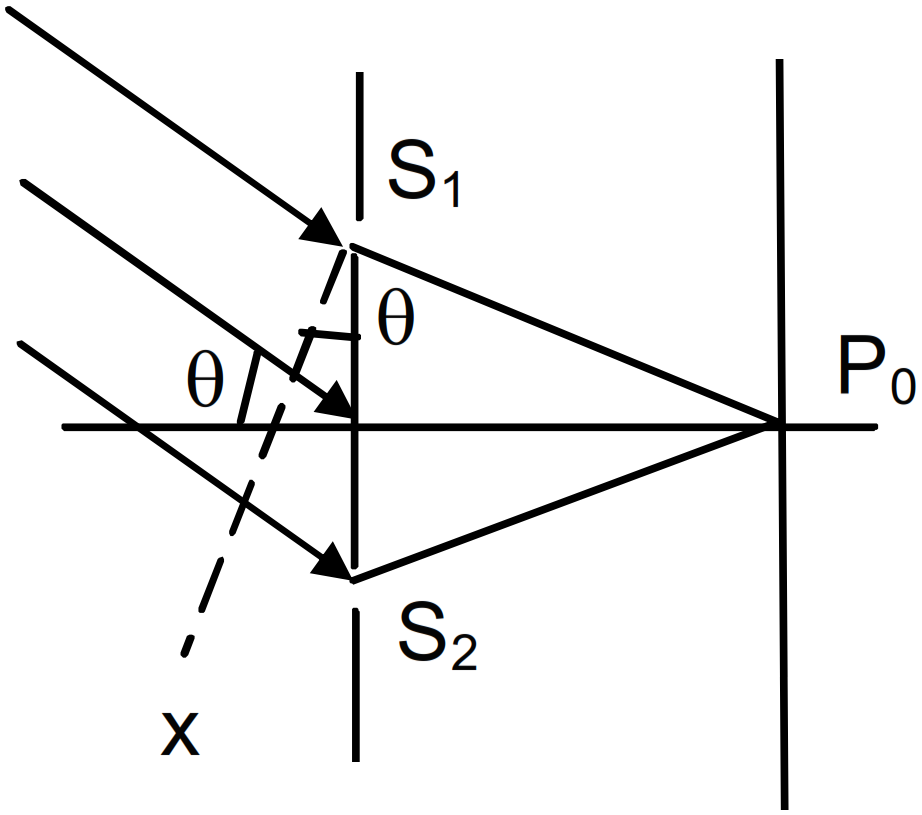

It can be seen from the figure that the wavefronts reaching O from S₁ and S₂ will have a path difference of S₂X.

In the $\Delta\text{S}_1\text{S}_2\text{X},$

$\sin\theta=\frac{\text{S}_2\text{X}}{\text{S}_1\text{S}_2}$

So, path difference $=\text{S}_2\text{X}=\text{S}_1\text{S}_2\sin\theta=\text{d}\sin\theta=\text{d}\times\frac{\lambda}{2\text{d}}=\frac{\lambda}{2}$

As the path difference is an odd multiple of $\frac{\lambda}{2},$ there will be a dark fringe at point P₀.

View full question & answer→
