Maths Case study (4 Marks)

Visualising Solid Shapes · Jharkhand Board (JAC) STD 8 (Jharkhand - English Medium). 11 questions.

Questions

Case study (4 Marks)

Take a timed test

11 questions · self-marked practice — reveal the answer and mark yourself.

Question 14 Marks
Using Euler’s formula, find the value of unknown $x, y, z, p, q, r,$ in the following table.
Faces $y$
Vertices $12$
Edges $18$
Answer
$V = 12, E = 18$ and $F = y So, F + V - E = 2 a$
$\Rightarrow y + 12 - 18 = 2 $
$\Rightarrow y - 6 = 2 $
$\Rightarrow y = 2 + 6 $
$\Rightarrow y = 8$
View full question & answer→
Question 24 Marks

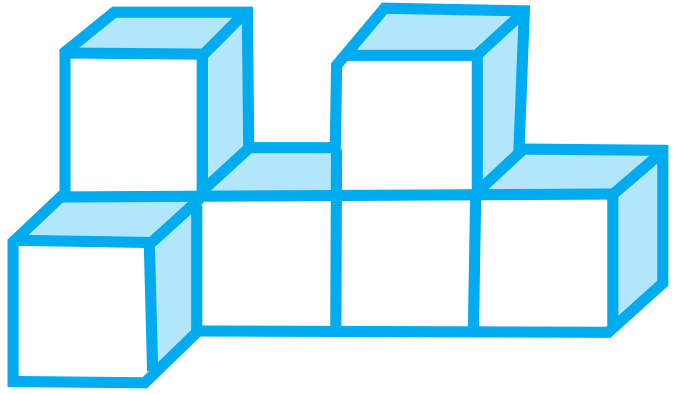

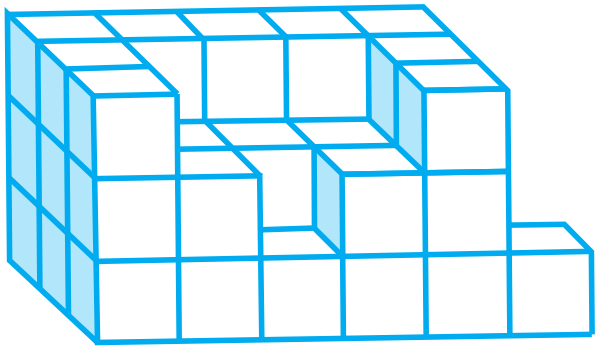

Draw the front, side and top view of the given shapes.
Answer

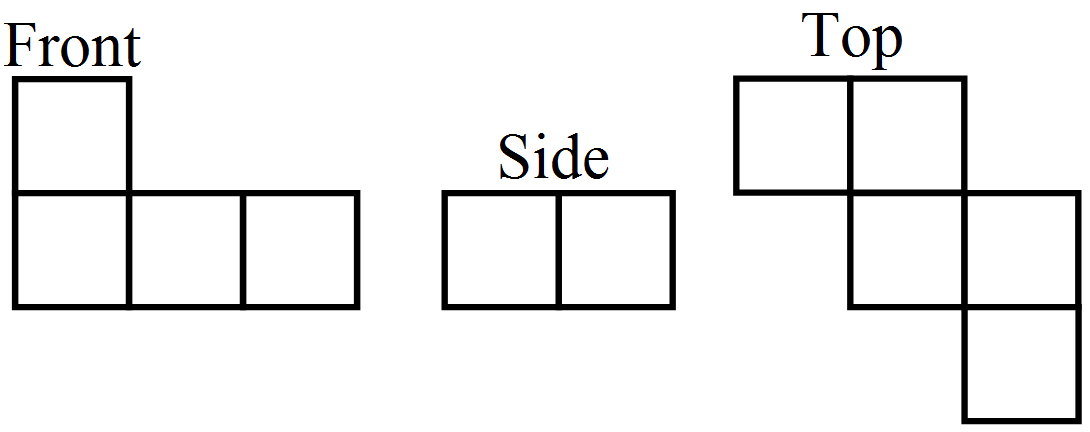

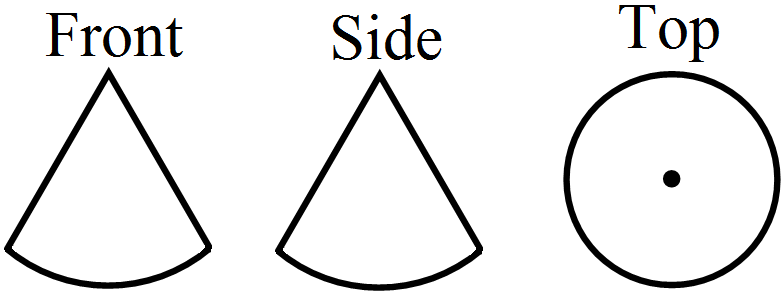

On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:
View full question & answer→
Question 34 Marks

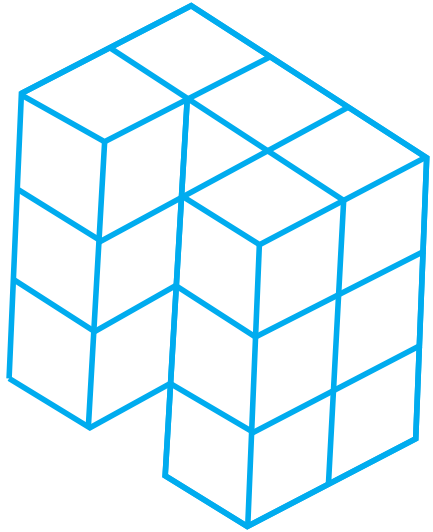

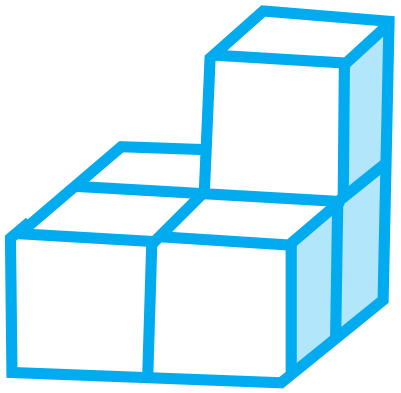

Draw the front, side and top view of the given shapes.
Answer
On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:
View full question & answer→
Question 44 Marks
Using Euler’s formula, find the value of unknown $x, y, z, p, q, r,$ in the following table.
Faces $9$
Vertices $z$
Edges $16$
Answer
$F = 9, E = 16,$ and $V = Z$
So, $F + V - E = 2$
$\Rightarrow 9 + z - 16 = 2$
$z - 7 = 2$
$\Rightarrow z = 2 + 7$
$\Rightarrow z = 9$
View full question & answer→
Question 54 Marks

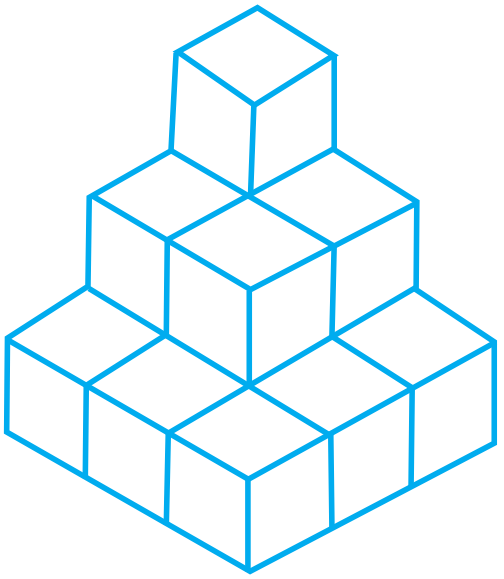

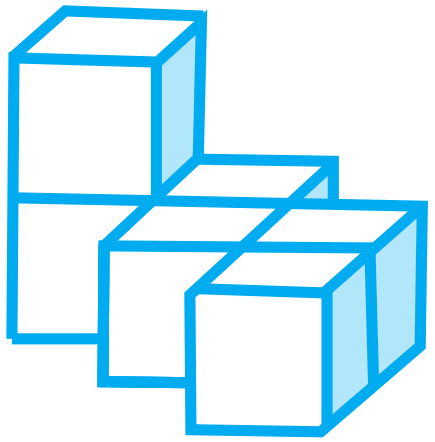

Draw the front, side and top view of the given shapes.
Answer

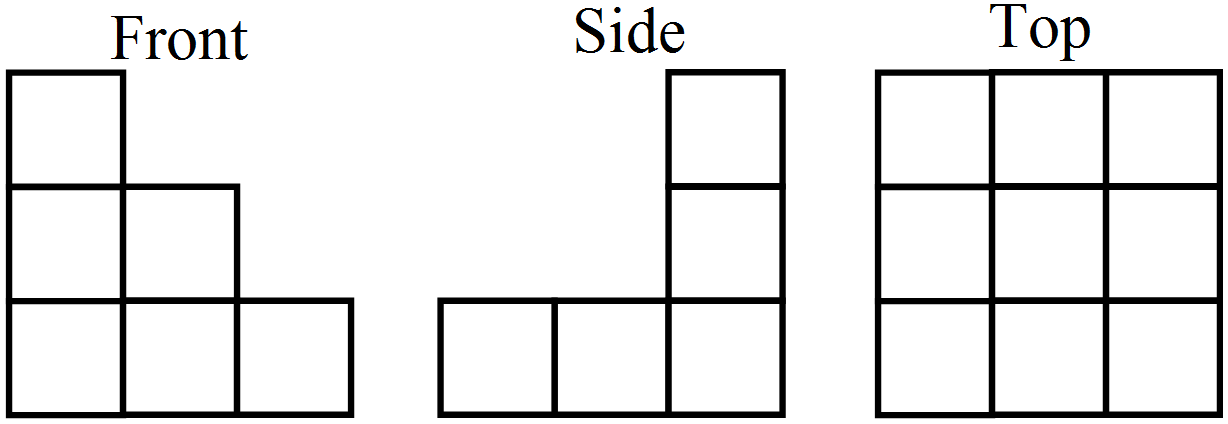

On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:
View full question & answer→
Question 64 Marks
Using Euler’s formula, find the value of unknown $x, y, z, p, q, r,$ in the following table.
Faces $7$
Vertices $10$
Edges $x$
Answer
By using Euler's formula for polyhedron. $F =7, V = 10$ and $E = x$
So, $F + V - E = 2 $
$\Rightarrow 7 + 10 - x = 2 $
$\Rightarrow 17 - x = 2 $
$\Rightarrow 17 - 2 = x $
$\Rightarrow x = 15$

View full question & answer→
Question 74 Marks

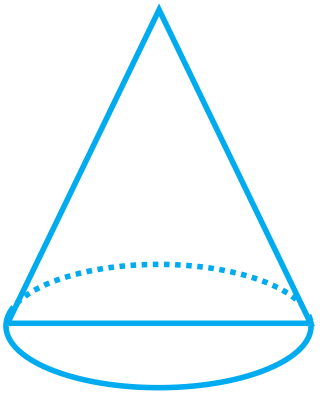

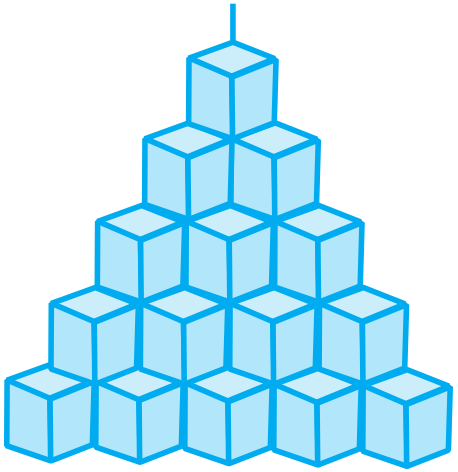

Draw the front, side and top view of the given shapes.
Answer

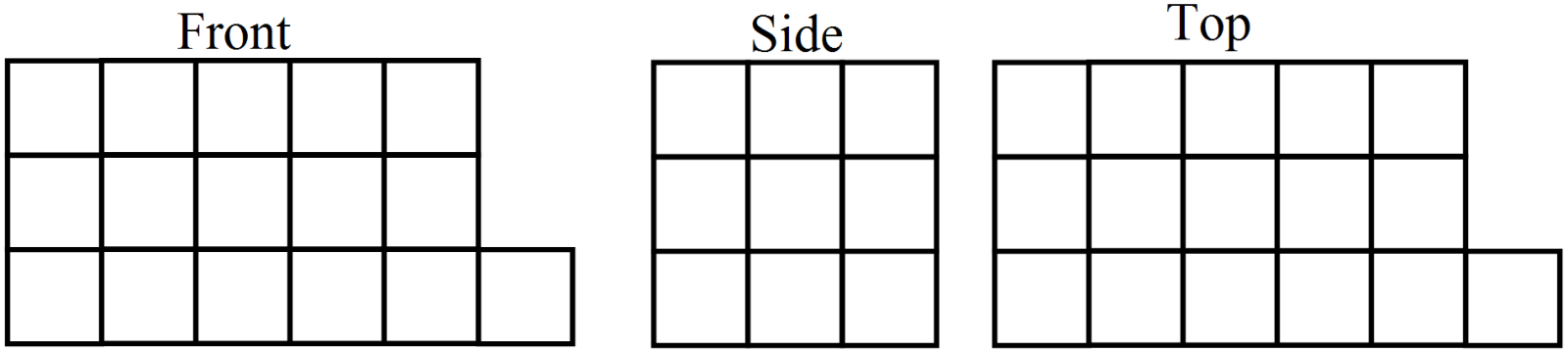

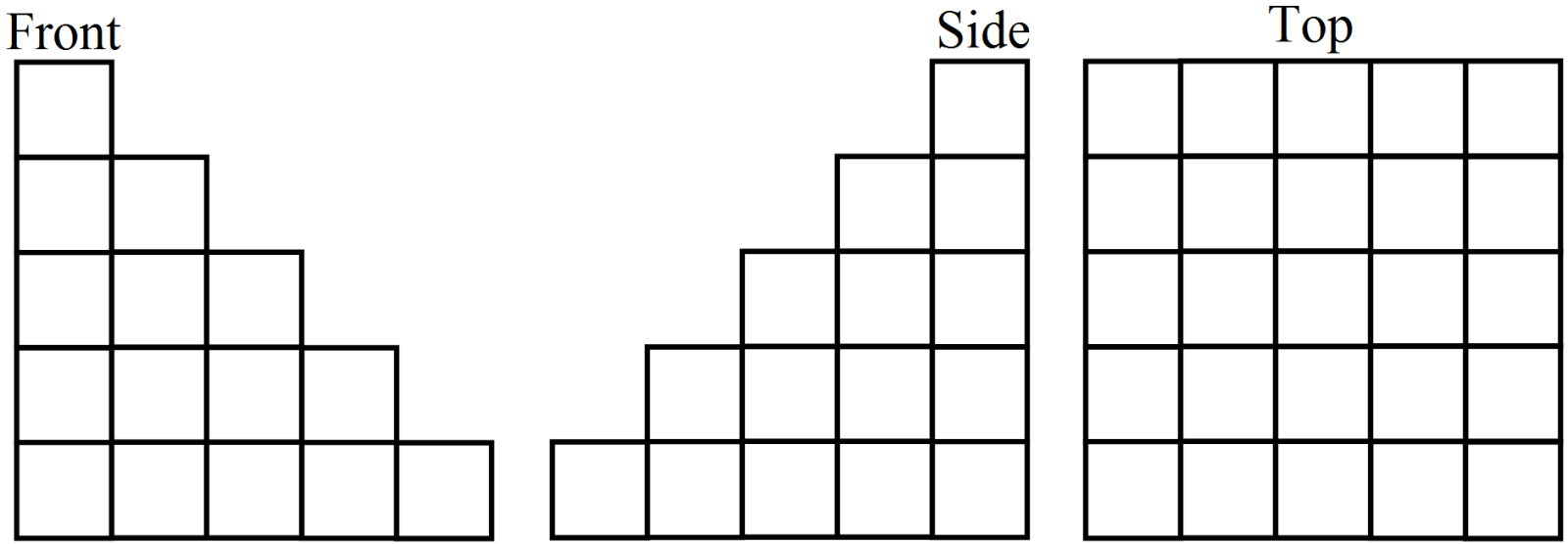

On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:
View full question & answer→
Question 84 Marks
Draw the front, side and top view of the given shapes.
Answer

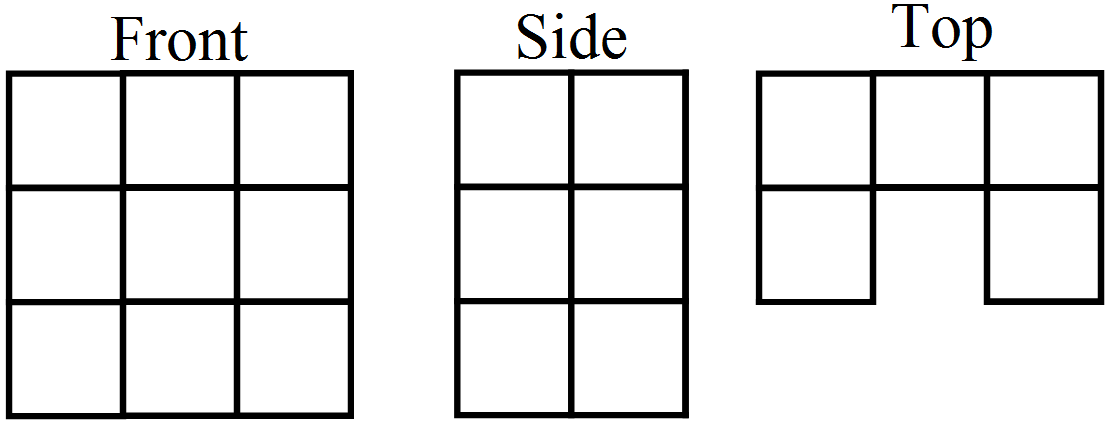

On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:
View full question & answer→
Question 94 Marks
Draw the front, side and top view of the given shapes.
Answer
On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:
View full question & answer→
Question 104 Marks
Draw the front, side and top view of the given shapes.
Answer
On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:
View full question & answer→
Question 114 Marks
Draw the front, side and top view of the given shapes.

Answer
On the basis of properties and features of front view, top view and side view, we can draw all the three views of the given figures as:

View full question & answer→
