MATHS 5 Marks Questions

Statistics · Rajasthan Board (RBSE) STD 9 (Rajasthan - English Medium). 14 questions.

Questions

5 Marks Questions

🎯

Test yourself on this topic

14 questions · timed · auto-graded

Question 15 Marks
100 surnames were randomly picked up from a local telephone directory and a frequency distribution of the number of letters in the English alphabets in the surnames was found as follows :

Number of letters

Number of surnames

1-4

6

4-6

30

6-8

44

8-12

16

12-20

4
  1. Draw a histogram to depict the given information.
  2. Write the class interval in which the maximum number of surnames lie.
Answer
  1.

    Number of letters

    Number of surnames

    Width of the class

    Length of the rectangle

    1-4

    6

    3

    $\frac{6}{3}$ $\times$ 2 = 4

    4-6

    30

    2

    $\frac{30}{2}$ $\times$ 2 = 30

    6-8

    44

    2

    $\frac{44}{2}$ $\times$ 2 = 44

    8-12

    16

    4

    $\frac{16}{4}$ $\times$ 2 = 8

    12-20

    4

    8

    $\frac{4}{8}$ $\times$ 2 = 1

  2. The class interval in which the maximum number of surnames lie is 6-8.

View full question & answer→
Question 25 Marks
A random survey of the number of children of various age groups playing in a park was found as follows

Age (in years) Number of children
1-2 5
2-3 3
3-5 6
5-7 12
7-10 9
10-15 10
15-17 4

Draw a histogram to represent the data above.

Answer
Here, the widths of the rectangles are varying. So, we need to make certain modifications in the lengths of the rectangles, so that the areas are became proportional to the frequencies.
The minimum class size is 1.
Length of rectangle (Adjusted frequency) = $\frac{\text { Minimum class size }}{\text { Class size of this class }}$ $\times$ Frequency
Then modified table of given data is shown below

Age (in years) Number of children (Frequency) Width of the class Length of the rectangle
1-2 5 1 $\frac{1}{1}$ $\times$ 5 = 5
2-3 3 1 $\frac{1}{1}$ $\times$ 3 = 3
3-5 6 2 $\frac{1}{2}$ $\times$ 6 = 3
5-7 12 2 $\frac{1}{2}$ $\times$ 12 = 6
7-10 9 3 $\frac{1}{3}$ $\times$ 9 = 3
10-15 10 5 $\frac{1}{5}$ $\times$ 10 = 2
15-17 4 2 $\frac{1}{2}$ $\times$ 4 = 2

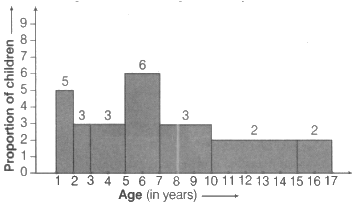

So, the histogram with varying width is given below

View full question & answer→
Question 35 Marks
The runs scored by two teams A and B on the first 60 balls in a cricket match are given below :

Number of balls Team A Team B
1-6 2 5
7-12 1 6
13-18 8 2
19-24 9 10
25-30 4 5
31-36 5 6
37-42 6 3
43-48 10 4
49-54 6 8
55-60 2 10

Represent the data of both the teams on the same graph by frequency polygons.
[Hint: First make the class intervals continuous.]

Answer

Number of balls

Class-Marks

Team A

Team B

0.5-6.5

3.5

2

5

6.5-12.5

9.5

1

6

12.5-18.5

15.5

8

2

18.5-24.5

21.5

9

10

24.5-30.5

27.5

4

5

30.5-36.5

33.5

5

6

36.5-42.5

39.5

6

3

42.5-48.5

45.5

10

4

48.5-54.5

51.5

6

8

54.5-60.5

57.5

2

10

View full question & answer→
Question 45 Marks
The following table gives the distribution of students of two sections according to the marks obtained by them:

Section A Section B
Marks Frequency Marks Frequency
0-10 3 0-10 5
10-20 9 10-20 19
20-30 17 20-30 15
30-40 12 30-40 10
40-50 9 40-50 1

Represent the marks of the students of both the sections on the same graph by frequency polygons.

Answer
For section A

Classes

Class-Marks

Frequency

0-10

5

3

10-20

15

9

20-30

25

17

30-40

35

12

40-50

45

9


For section B

Classes

Class-Marks

Frequency

0-10

5

5

10-20

15

19

20-30

25

15

30-40

35

10

40-50

45

1

View full question & answer→
Question 55 Marks
The following table gives the life times of 400 neon lamps :

Life time(in hours)

Number of lamps

300-400

14

400-500

56

500-600

60

600-700

86

700-800

74

800-900

62

900-1000

48
  1. Represent the given information with the help of a histogram.
  2. How many lamps have a life time of more than 700 hours?
Answer
  2. 74 + 62 + 48 = 184 lamps have a life time of more than 700 hours.
View full question & answer→
Question 65 Marks
The length of 40 leaves of a plant are measured correct to one millimetre, and the obtained data is represented in the following table :
Length (in mm) Number of leaves
118-126 3
127-135 5
136-144 9
145-153 12
154-162 5
163-171 4
172-180 2
  1. Draw a histogram to represent the given data. [Hint: First make the class intervals continous]
  2. Is there any other suitable graphical representation for the same data?
  3. Is it correct to conclude that the maximum number of leaves are 153 mm long? Why?
Answer
  1. Modified continuous Distribution

    Length (in mm)

    Number of leaves

    117.5-126.5

    3

    126.5-135.5

    5

    135.5-144.5

    9

    144.5-153.5

    12

    153.5-162.5

    5

    162.5-171.5

    4

    171.5-180.5

    2

  2. Frequency Polygon.

  3. No because the maximum number of leaves have their lengths lying in the interval 145-153.

View full question & answer→
Question 75 Marks
Given below are the seats won by different political parties in the polling outcome of a state assembly elections:

Political party

A

B

C

D

E

F

Seats won

75

55

37

29

10

37

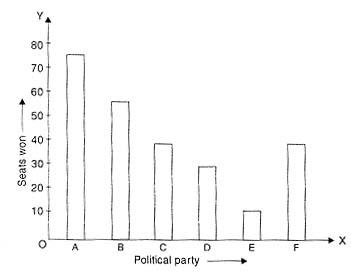

  1. Draw a bar graph to represent the polling results.
  2. Which political party won the maximum number of seats?
Answer
  2. Political party A won the maximum number of seats.
View full question & answer→
Question 85 Marks
The following data on the number of girls (to the nearest ten) per thousand boys in different sections of the society is given below :

Section

Number of girls per thousand boys

Scheduled caste

940

scheduled tribe

970

Non SC/ST

920

Backward districts

950

Non-backward districts

920

Rural

930

Urban

910
  1. Represent the information above by a bar graph.
  2. In the classroom discuss what conclusion can be arrived at from the graph.
Answer
  2. The two conclusions we can arrive at from the graph are as follows:
  3. The numbers of girls to the nearest ten per thousand boys is maximum in Scheduled Tribe section of the society and minimum in Urban section of the society.
  4. The number of girls to the nearest ten per thousand boys is the same for 'Non SC/ST' and 'Non-backward Districts' sections of the society.
View full question & answer→
Question 95 Marks
A survey conducted by an organisation for the cause of illness and death among the women between the ages 15-44 (in years) worldwide, found the following figures (in %) :

S.No.

Causes

Female fatality rate (%)

1

Reproductive health conditions

31.8

2

Neuropsychiatric conditions

25.4

3

Injuries

12.4

4

Cardiovascular conditions

4.3

5

Respiratory conditions

4.1

6

Other causes

22.0

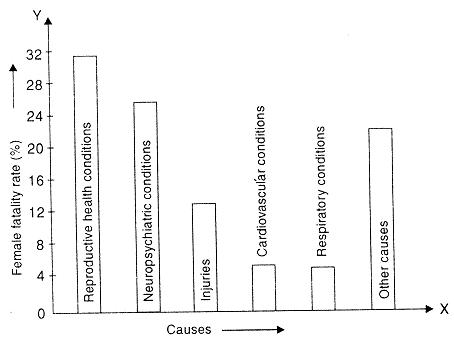

  1. Represent the information given above graphically.
  2. Which condition is the major cause of women's ill health and death worldwide?
  3. Try to find out, with the help of your teacher, any two factors which play a major role in the cause in (ii) above being the major cause.
Answer
  2. Reproductive health conditions is the major cause of women's ill health and death worldwide.
  3. Lack of proper diet, lack of advised exercises.
View full question & answer→
Question 105 Marks
In a city, the weekly observations made in a study on the cost of living index are given in the following table:

Cost of living index Number of weeks
140 - 150 5
150 - 160 10
160 - 170 20
170 - 180 9
180 - 190 6
190 - 200 2
Total 52

Draw a frequency polygon for the data above (without constructing a histogram)

Answer
Since we want to draw a frequency polygon without a histogram, let us find the class-marks of the classes given above, that is of 140 - 150, 150 - 160,.... For 140 - 150, the upper limit = 150, and the lower limit = 140
So, the class-mark = $\begin{equation} \frac{150+140}{2}=\frac{290}{2}=145 \end{equation}$
Continuing in the same manner, we find the class-marks of the other classes as well.
So, the new table obtained is as shown in the following table: Table
Cost of living indexClass-marksNumber of weeks
140 - 1501455
150 - 16015510
160 - 17016520
170 - 1801759
180 - 1901856
190 - 2001952
Total52

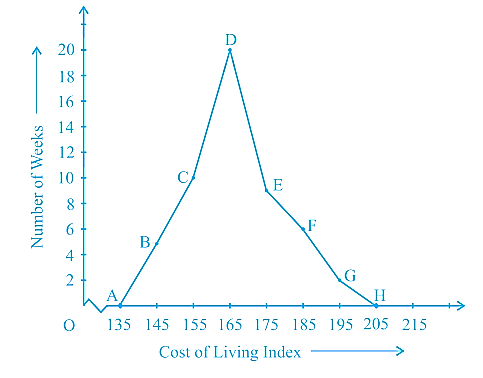

We can now draw a frequency polygon by plotting the class-marks along the horizontal axis, the frequencies along the vertical-axis, and then plotting and joining the points B(145, 5), C(155, 10), D(165, 20), E(175, 9), F(185, 6) and G(195, 2) by line segments. We should not forget to plot the point corresponding to the class-mark of the class 130 - 140 (just before the lowest class 140 - 150) with zero frequency, that is, A(135, 0), and the point H (205, 0) occurs immediately after G(195, 2). So, the resultant frequency polygon will be ABCDEFGH (see Fig.)
View full question & answer→
Question 115 Marks
Consider the marks, out of 100, obtained by 51 students of a class in a test, given in Table.

Marks Number of students
0 - 10 5
10 - 20 10
20 - 30 4
30 - 40 6
40 - 50 7
50 - 60 3
60 - 70 2
70 - 80 2
80 - 90 3
90 - 100 9
Total 51

Draw a frequency polygon corresponding to this frequency distribution table.

Answer

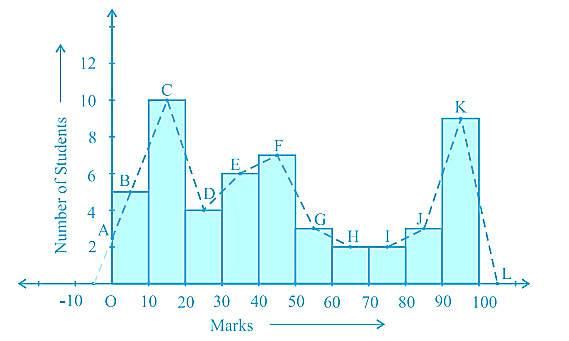

The OABCDEFGHIJKL is the frequency polygon, which is shown in Fig.

Frequency polygons can also be drawn independently without drawing histograms. For this, we require the mid-points of the class-intervals used in the data. These mid-points of the class-intervals are called class-marks.
View full question & answer→
Question 125 Marks
A teacher wanted to analyse the performance of two sections of students in a mathematics test of 100 marks. Looking at their performances, she found that a few students got under 20 marks and a few got 70 marks or above. So she decided to group them into intervals of varying sizes as follows: 0 - 20, 20 - 30, . . ., 60 - 70, 70 - 100. Then she formed the following table:

Marks Number of students
0 - 20 7
20 - 30 10
30 - 40 10
40 - 50 20
50 - 60 20
60 - 70 15
70 - above 8
Total 90

Draw a histogram for this table?

Answer

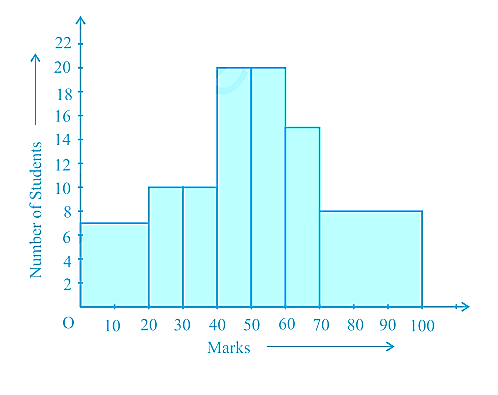

The histrogram is given below.
View full question & answer→
Question 135 Marks
A family with a monthly income of ₹ 20,000 had planned the following expenditures per month under various heads:

Heads Expenditure (in thousand rupees)
Grocery 4
Rent 5
Education of children 5
Medicine 5
Fuel 2
Entertainment 1
Miscellaneous 1

Draw a bar graph for the data above.

Answer
We draw the bar graph of this data in the following steps. Note that the unit in the second column is thousand rupees. So, ‘4’ against ‘grocery’ means ₹4000.
  1. We represent the Heads (variable) on the horizontal axis choosing any scale, since the width of the bar is not important. But for clarity, we take equal widths for all bars and maintain equal gaps in between. Let one Head be represented by one unit.
  2. We represent the expenditure (value) on the vertical axis. Since the maximum expenditure is ₹5000, we can choose the scale as 1 unit = ₹1000.

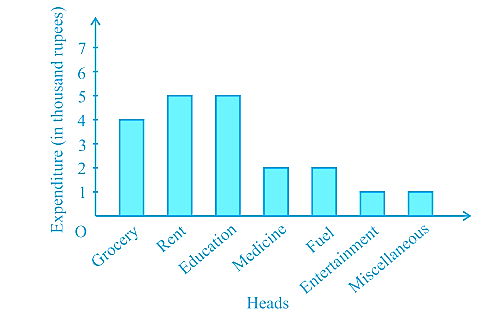

  3. The bar graph is drawn in Fig.
  4. Here, you can easily visualise the relative characteristics of the data at a glance, e.g., the expenditure on education is more than double that of medical expenses. Therefore, in some ways it serves as a better representation of data than the tabular form.
View full question & answer→
Question 145 Marks
Consider the marks obtained by 10 students in a mathematics test as given below:
55, 36, 95, 73, 60, 42, 25, 78, 75, 62
Find the maximum, minimum scores and range.
Answer
Let us arrange the marks in ascending order as 25, 36, 42, 55, 60, 62, 73, 75, 78, 95
Now, the lowest marks are 25 and the highest marks are 95.
The range, in this case, is 95 – 25 = 70
View full question & answer→
