A $100\, ohm$ galvanometer gives full scale deflection at $10\, mA$. How much shunt is required to read $100\, mA$ .............. $ohm$
Medium
Download our app for free and get started
(a) ${i_g} = i\frac{S}{{G + S}}$
$ \Rightarrow $ $10 \times {10^{ - 3}} = \frac{S}{{100 + S}} \times 100 \times {10^{ - 3}}$
$90\;S = 1000 \Rightarrow $$S = \frac{{1000}}{{90}} = 11.11\;\Omega $.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A conductor of length $l$ and mass $m$ is placed along the east-west line on a table. Suddenly a certain amount of charge is passed through it and it is found to jump to a height $h$. The earth’s magnetic induction is $B$. The charge passed through the conductor is:View Solution
- 2The magnitude of magnetic induction at mid-point $O$ due to current arrangement as shown in Fig will beView Solution
- 3An electron has mass $9 \times {10^{ - 31}}\,kg$ and charge $1.6 \times {10^{ - 19}}C$ is moving with a velocity of ${10^6}\,m/s$, enters a region where magnetic field exists. If it describes a circle of radius $0.10\, m$, the intensity of magnetic field must beView Solution
- 4View SolutionIn a region, steady and uniform electric and magnetic fields are present. These two fields are parallel to each other. A charged particle is released from rest in this region. The path of the particle will be a
- 5A magnetic needle suspended parallel to a magnetic field requires $\sqrt 3\,J $ of work to turn it through $60^o$. The torque needed to maintain the needle in this position will beView Solution

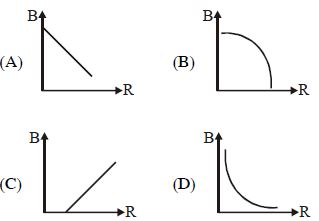

- 6Which of the following graphs correctly represents the variation of magnetic field with distance $R$ from a long straight current carrying conductor ?View Solution
