A $30\,\mu F$ capacitor is charged by a constant current of $30\, mA$. If the capacitor is initially uncharged, how long does it take for the potential difference to reach $400\, V$.....$s$
Medium
Download our app for free and get started
$\mathrm{Q}=\mathrm{CV}=30 \times 10^{-6} \times 400=12 \times 10^{-3} \mathrm{\,C}$
$\mathrm{t}=\frac{\mathrm{Q}}{\mathrm{I}}=\frac{12 \times 10^{-3}}{30 \times 10^{-3}}=0.4 \mathrm{\,sec}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

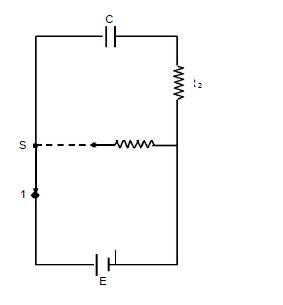

- 1Switch $S$ of circuit shown in figure is in position $1$ for a long time. At instant $t = 0$ , it is thrown from position $1$ to $2$ . The thermal power $P_1(t)$ generated in resistance $R_1$View Solution
