(a) A current-carrying circular loop lies on a smooth horizontal plane. Can a uniform magnetic field be set up in such a manner that the loop turns around itself (i.e., turns about the vertical axis).
(b) A current-carrying circular loop is located in a uniform external magnetic field. If the loop is free to turn, what is its orientation of stable equilibrium? Show that in this orientation, the flux of the total field (external field + field produced by the loop) is maximum.
(c) A loop of irregular shape carrying current is located in an external magnetic field. If the wire is flexible, why does it change to a circular shape?

✓

Answer

(a) No, because that would require $\tau$ to be in the vertical direction. But $\tau=I A \times B$, and since $A$ of the horizontal loop is in the vertical direction, $\tau$ would be in the plane of the loop for any $B$.
(b) Orientation of stable equilibrium is one where the area vector $A$ of the loop is in the direction of external magnetic field. In this orientation, the magnetic field produced by the loop is in the same direction as external field, both normal to the plane of the loop, thus giving rise to maximum flux of the total field.
(c) It assumes circular shape with its plane normal to the field to maximise flux, since for a given perimeter, a circle encloses greater area than any other shape.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Moving Charges and Magnetism→Moving Charges and Magnetism — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

An experimenter's diary reads as follows: "A charged particle is projected in a magnetic field of $(7.0\vec{\text{i}}-3.0\vec{\text{j}})\times10^{-3}\text{T}.$ The acceleration of the particle is found to be $(\vec{\text{i}}+7.0\vec{\text{j}})\times10\text{m/s}^{2\text{n}}.$ The number to the left of $\vec{\text{i}}$ in the last expression was not readable. What can this number be?

The radius of innertmost orbit of hydrogen atom is $5.3 \times 10^{-11} m$. What is the radius of second excited state?

Consider the circular motion of the earth around the sun. Which of the following statements is more appropriate?

Gravitational attraction of the sun on the earth is equal to the centripetal force.
Gravitational attraction of the sun on the earth is the centripetal force.

Magnetic moment of a small bar magnet is 0.24 newton metre tesla ${ }^{-1}$. Calculate magnetising field of the magnet at a distance of 10 cm from the centre of the magnet on its axis.

A student wants to use two $p-n$ junction diodes to convert alternating current into direct current. Draw the labelled circuit diagram she would use and explain how it works.
Give the truth table and circuit symbol for $\text{NAND}$ gate.

The radionuclide ${ }^{11} C$ decays according to ${ }_6^{11} C \rightarrow{ }_5^{11} B+ e ^{+}+ v : T _{1 / 2}=20.3$ min. The maximum energy of the emitted positron is $0.960\ MeV$ . Given the mass values: $m \left({ }_6^{11} C \right)=11.011434 u$ and $m \left({ }_5^{11} B\right)=11.009305 u$, calculate $Q$ and compare it with the maximum energy of the positron emitted.

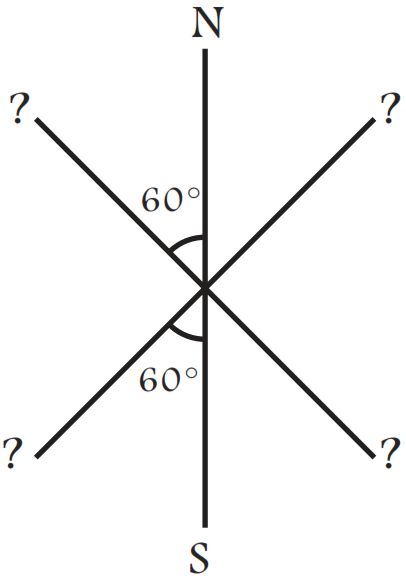

Three identical bar magnets are rivetted together at centre in the same plane as shown in Fig. This system is placed at rest in a slowly varying magnetic field. It is found that the system of magnets does not show any motion. The north-south poles of one magnet is shown in the Fig. Determine the poles of the remaining two.
