13. oscillations — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics13. oscillations1 Mark
MCQ
A body executing $S.H.M.$ along a straightline has a velocity of $3 \,ms ^{-1}$ when it is at a distance of $4 \,m$ from its mean position and $4 \,ms ^{-1}$ when it is at a distance of $3 \,m$ from its mean position. Its angular frequency and amplitude are
  • A
    $2 \,rad s ^{-1}$ and $5 \,m$
  • B
    $1 \,rad s ^{-1}$ and $10 \,m$
  • C
    $2 \,rad s ^{-1}$ and $10 \,m$
  • ✓
    $1 \,rad s ^{-1}$ and $5 \,m$
✓

Answer

Correct option: D.
$1 \,rad s ^{-1}$ and $5 \,m$
d
(d)

$v=\omega \sqrt{A^2-x^2}$

$v_1=3 \,m / s x_1=4 \,m$

$v_2=4 \,m / s x_2=3 \,m$

$3=\omega \sqrt{A^2-4^2} \ldots(i)$

$4=\omega \sqrt{A^2-3^2} \ldots(ii)$

Solving $(i)$ and $(ii)$, we get

$A=5 \,m$ and $\omega=1 \,rad / s$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 13. oscillations→13. oscillations — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

For a body moving with relativistic speed, if the velocity is doubled, then
→
Which relation is wrong
→
Three bodies having masses $5\, kg , 4\, kg$ and $2 \,kg$ is moving at the speed of $5\, m / s , 4\, m / s$ and $2 \,m / s$ respectively along $X -$axis. The magnitude of velocity of centre of mass is (in $m/s$)
→
A stone is dropped into a lake from a tower $500\, metre$ high. The sound of the splash will be heard by the man approximately after ..... $\sec$
→
A car travels north with a uniform velocity. It goes over a piece of mud which sticks to the tyre. The particles of the mud, as it leaves the ground are thrown
→

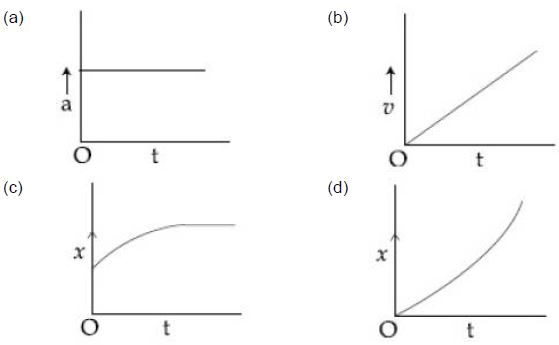

A particle starts from origin $O$ from rest and moves with a uniform acceleration along the positive $x -$ axis. Identify all figures that correctly represent the motion qualitatively. ($a =$ acceleration, $v =$ velocity, $x =$ displacement, $t =$ time)
→
