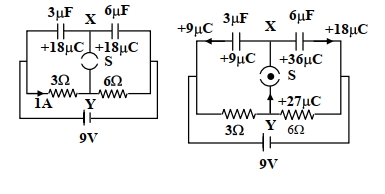

A circuit is connected as shown in the figure with the switch $S$ open. When the switch is closed the total amount of charge that flows from $\mathrm{Y}$ to $\mathrm{X}$ is
IIT 2007, Advanced
