A long straight wire in the horizontal plane carries a current of $50\, A$ in north to south direction. Give the magnitude and direction of $B$ at a point $2.5\,m$ east of the wire
Medium
Download our app for free and get started

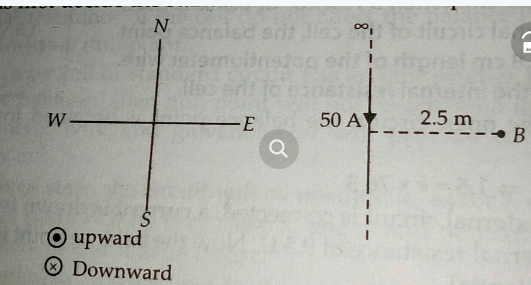

Let us first decide the standard direction on the plane of paper. current carries from North to south direction and point $\mathrm{B}$ is placed right side of wire. according to right hand palm rule, direction of magnetic field is upward . [ see figure]
magnitude of magnetic field, $|B|=\frac{\mu_{0} 2 I}{4 \pi r}$
$=10^{-7} \times \frac{2 \times 50}{2.5}$
$=4 \times 10^{-6} T$
hence, in vector form magnetic field $B=4 \times 10^{-6} \mathrm{k}$ T
