A metallic spherical shell has an inner radius $R_1$ and outer radius $R_2$. A charge $Q$ is placed at the centre of the spherical cavity. What will be surface charge density on the inner surface
Medium
Download our app for free and get started

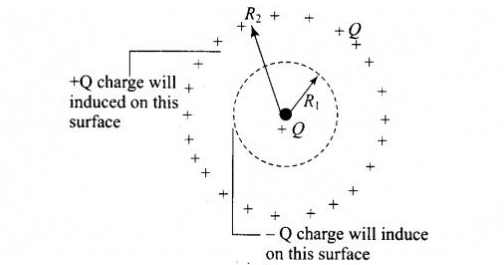

A charge $\mathrm{Q}$ is placed at the centre of the spherical cavity. So, the charge induced at the inner surface of the sphere will be -Q and at outer surface of the sphere is $+Q$.
The surface charge density on the inner surface $\sigma_{1}=\frac{\text { Charge }}{\text { Area }}=\frac{-Q}{4 \pi R_{1}^{2}}$
