A parallel plate capacitor with air between the plates has capacitance of $9\ pF$. The separation between its plates is '$d$'. The space between the plates is now filled with two dielectrics. One of the dielectrics has dielectric constant $k_1 = 3$ and thickness $\frac{d}{3}$ while the other one has dielectric constant $k_2 = 6$ and thickness $\frac{2d}{3}$ . Capacitance of the capacitor is now.......$pF$
AIEEE 2008, Medium
Download our app for free and get started

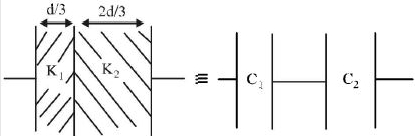

The given capacitance is equal to two capacitances connected in series where
$C_{1}=\frac{k_{1} \epsilon_{0} A}{d / 3}=\frac{3 k_{1} \epsilon_{0} A}{d}=\frac{3 \times 3 \epsilon_{0} A}{d}=\frac{9 \epsilon_{0} A}{d}$
and
$C_{2}=\frac{k_{2} \epsilon_{0} A}{2 d / 3}=\frac{3 k_{2} \epsilon_{0} A}{2 d}=\frac{3 \times 6 \epsilon_{0} A}{2 d}=\frac{9 \epsilon_{0} A}{d}$
The equivalent capacitance $C_{\mathrm{eq}}$ is
$\frac{1}{C_{\mathrm{eq}}}=\frac{1}{C_{1}}+\frac{1}{C_{2}}=\frac{d}{9 \epsilon_{0} A}+\frac{d}{9 \epsilon_{0} A}=\frac{2 d}{9 \epsilon_{0} A}$
$\therefore C_{e q}=\frac{9}{2} \frac{\epsilon_{0} A}{d}=\frac{9}{2} \times 9 \,p F=40.5 \,p F$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A parallel plate capacitor of capacitance $C$ has spacing $d$ between two plates having area $A$. The region between the plates is filled with $N$ dielectric layers, parallel to its plates, each with thickness $\delta=\frac{ d }{ N }$. The dielectric constant of the $m ^{\text {th }}$ layer is $K _{ m }= K \left(1+\frac{ m }{ N }\right)$. For a very large $N \left(>10^3\right)$, the capacitance $C$ is $\alpha\left(\frac{ K \varepsilon_0 A }{ d \;ln 2}\right)$. The value of $\alpha$ will be. . . . . . . .View Solution
[ $\epsilon_0$ is the permittivity of free space]
- 2An electron with kinetic energy $K _{1}$ enters between parallel plates of a capacitor at an angle $'\alpha'$ with the plates. It leaves the plates at angle $' \beta '$ with kinetic energy $K _{2}$. Then the ratio of kinetic energies $K _{1}: K _{2}$ will be ....... .View Solution
- 3A parallel plate capacitor has circular plates of $0.08\,m$ radius and $1.0 \times {10^{ - 3}}\,m$ separation. If a $P.D.$ of $100\;volt$ is applied, the charge will beView Solution

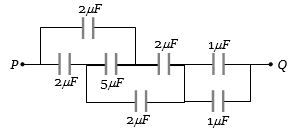

- 4The effective capacitance between the points $P$ and $Q$ of the arrangement shown in the figure is......$\mu F$View Solution
