A pen of mass $m$ is lying on a piece of paper of mass $M$ placed on a rough table. If the coefficients of friction between the pen and paper and the paper and the table are $\mu_1$ and $\mu_2$, respectively. Then, the minimum horizontal force with which the paper has to be pulled for the pen to start slipping is given by
KVPY 2010, Advanced
Download our app for free and get startedPlay store
(a)

Limiting value of friction on pen is

$f_1=\mu_1 m g$

So, for pen to start slipping, force acting over pen is

$F_1 \geq f_{1,}=\mu_1 m g$

So, minimum acceleration of pen is

$a_{\min }=\frac{F_1}{m}=\mu_1 g$

Hence, minimum acceleration of paper is $a_{\min }=\mu_1 g$

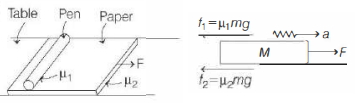

Now, consider free body diagram of paper

We have,

$F_{\text {net }} =M a_{\min }=F-f_1-f_2$

$\Rightarrow \quad F= M a_{\min }+f_1+f_2$

$= M \mu_1 g+\mu_1 m g+\mu_2(m+M) g$

$=(M+m)\left(\mu_1+\mu_2\right) g$
