A rectangular wire frame, shown below, is placed in a uniform magnetic field directed upward and normal to the plane of the paper. The part AB is connected to a spring. The spring is stretched and released when the wire AB has come to the position A′ B′ (t = 0) How would the induced emf vary with time? Neglect damping.

✓

Answer

When the spring is stretched and released, the wire AB will execute simple harmonic (sinusoidal) motion, so induced emf will vary periodically. At t = 0, wire is at the extreme position. $\text{v}=0.$ $\text{v}=\text{A}\omega\sin\omega\text{t}$ Induced emf $\varepsilon = \text{Bvl}$ $=\text{BA}\omega\text{l}\sin\omega\text{t}$ Where A = BB′= AA′ is the amplitude of motion and ω is angular frequency.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Electromagnetic Induction→Electromagnetic Induction — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

State two important properties of photon which are used to write Einstein's photoelectric equation. Define (i) Stopping potential and (ii) Threshold frequency, using Einstein's equation and drawing necessary plot between relevant quantities.

Calculate the $Q-$value of the fusion reaction
$^4He + ^4He = ^8Be.$
Is such a fusion energetically favourable? Atomic mass of $^8Be$ is $8.0053u$ and that of $^4He$ is $4.0026u.$

Visible light has wavelengths in the range of 400nm to 780nm. Calculate the range of energy of the photons of visible light.

Find the angle of minimum deviation for an equilateral prism made of a material of refractive index 1.732. What is the angle of incidence for this deviation?

A string of length 40cm and weighing 10g is attached to a spring at one end and to a fixed wall at the other end. The spring has a spring constant of 160N/m and is stretched by 1.0cm. If a wave pulse is produced on the string near the wall, how much time will it take to reach the spring?

A horizontal overhead power line carries a current of 90 A in east to west direction. What is the magnitude and direction of the magnetic field due to the current 1.5 m below the line?

A particle goes in a circle of radius 2.0cm. A concave mirror of focal length 20cm is placed with its principal axis passing through the centre of the circle and perpendicular to its plane. The distance between the pole of the mirror and the centre of the circle is 30cm. Calculate the radius of the circle formed by the image.

How is the mutual inductance of a pair of coils affected when:
i. separation between the coils is increased?
ii. the number of turns of each coil is increased?
iii. A thin iron sheet is placed between the two coils, other factors remaining the same?

How are electromagnetic waves produced? What is the source of energy of these waves? Write mathematical expressions for electric and magnetic fields of an electromagnetic wave propagating along the z-axis. Write any two important properties of electromagnetic waves.

Show using a proper diagram how unpolarised light can be linearly polarised by reflection from a transparent glass surface.

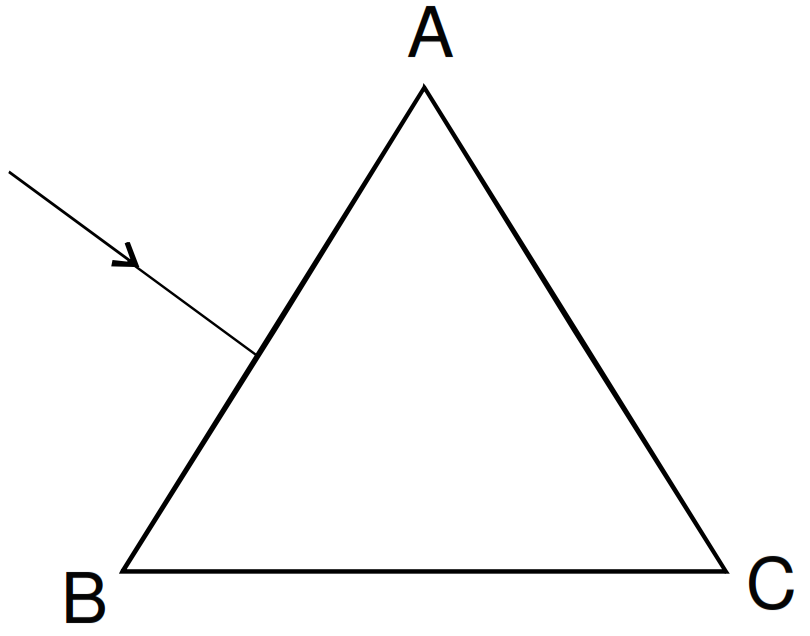

The figure shows a ray of light falling normally on the face $AB$ of an equilateral glass prism having refractive index $\frac{3}{2},$ placed in water of refractive index $\frac{4}{3}.$ Will this ray suffer total internal reflection on striking the face $AC$? Justify your answer.
