MCQ
A rough vertical board has an acceleration $‘a’$ so that a $2$ kg block pressing against it does not fall. The coefficient of friction between the block and the board should be
- ✓$ > g/a$
- B$ < g/a$
- C$ = g/a$
- D$ > a/g$
✓
Answer
Correct option: A.
$ > g/a$
a
(a) For the limiting condition upward friction force between board and block will balance the weight of the block.
(a) For the limiting condition upward friction force between board and block will balance the weight of the block.
i.e. $F > mg$
==> $\mu (R) > mg$
==> $\mu (ma) > mg$
==> $\mu > \frac{g}{a}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Even Carnot engine cannot give $100\%$ efficiency because we cannot
→Calculate the maximum acceleration (in $m s ^{-2}$) of a moving car so that a body lying on the floor of the car remains stationary. The coefficient of static friction between the body and the floor is $0.15$ $\left( g =10 m s ^{-2}\right)$.
→Two long capillary tubes $A$ and $B $ of radius $R_B>R_A$ dipped in same liquid. Then
→A ball rolls from the top of a stair way with a horizontal velocity $u\; m /s$ . If the steps are $h\; m$ high and $b\; m$ wide, the ball will hit the edge of the $n^{th}$ step, if $n=$
→$Assertion$ : A tennis ball bounces higher on hills than in plains.
$Reason$ : Acceleration due to gravity on the hill is greater than that on the surface of earth
→$Reason$ : Acceleration due to gravity on the hill is greater than that on the surface of earth
The time period of a simple pendulum of length $L$ as measured in an elevator descending with acceleration $\frac{g}{3}$ is
→The distance travelled by a particle is related to time $t$ as $x =4 t ^2$. The velocity of the particle at $t =$ $5 s$ is $.........ms^{-1}$
→$Assertion :$ The total translational kinetic energy of all the molecules of a given mass of an ideal gas is $1.5$ times the product of its pressure and its volume.
$Reason :$ The molecules of a gas collide with each other and the velocities of the molecules change due to the collision.
→$Reason :$ The molecules of a gas collide with each other and the velocities of the molecules change due to the collision.

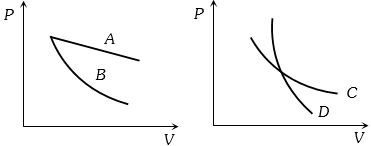

In the following figure, four curves $A, B, C$ and $D$ are shown. The curves are
