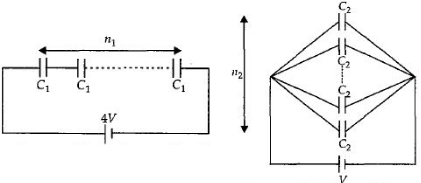

A series combination of $n_1$ capacitors, each of value $C_1$ is charged by a source of potential difference $4\, V.$ When another parallel combination of $n_2$ capacitors, each of value $C_2,$ is charged by a source of potential difference $V$, it has the same (total) energy stored in it, as the first combination has. The value of $C_2,$ in terms of $C_1$ is then
  • A$\frac{{2{C_1}}}{{{n_1}{n_2}}}$
  • B$16$ $\frac{{{n_2}}}{{{n_1}}}\;{C_1}$
  • C$2$ $\frac{{{n_2}}}{{{n_1}}}\;{C_1}$
  • D$\;\frac{{16{C_1}}}{{{n_1}{n_2}}}$
AIPMT 2010,AIEEE 2012, Diffcult
