A small conducting loop of radius $o$ and resistance $r$ is pulled with velocity $v$ perpendicular to a long straight conductor carrying a current $i_o$ . If a constant power $P$ is dissipated in the loop. The variation of velocity of the loop as a function of $x$ .Given that $x >> 0$

✓
$ \frac{2x^2}{\mu_0 i_0 a^2}\sqrt{Pr}$
B
$ \frac{4x^2}{\mu_0 i_0 a^2}\sqrt{Pr}$
C
$ \frac{6x^2}{\mu_0 i_0 a^2}\sqrt{Pr}$
D
none of these

✓

Answer

Correct option: A.

$ \frac{2x^2}{\mu_0 i_0 a^2}\sqrt{Pr}$

a
$\mathrm{B}=\frac{\mu_{0} \mathrm{i}}{2 \mathrm{x}}$

$\phi=\frac{\mu_{0} \mathrm{i}}{2 \mathrm{x}}\left(\pi \mathrm{a}^{2}\right)$ ........$(1)$

$\varepsilon=\frac{\mathrm{d} \phi}{\mathrm{dt}}=\frac{\mu_{0} \mathrm{i}\left(\pi \mathrm{a}^{2}\right)}{2}\left(\frac{-1}{\mathrm{x}^{2}}\right)(\mathrm{v})$ .........$(2)$

$\mathrm{i}=\frac{\mu_{0} i_{0} \pi \mathrm{a}^{2} \mathrm{v}}{\mathrm{r} \mathrm{x}^{2}}$ ..........$(3)$

$\mathrm{P}=\mathrm{i}^{2} \mathrm{r}$ ..........$(4)$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 6. Electromagnetic induction→6. Electromagnetic induction — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

An object is placed infront of a convex mirror at a distance of $50\, cm$. A plane mirror is introduced covering the lower half of the convex mirror. If the distance between the object and plane mirror is $30\, cm$, it is found that there is no parallax between the images formed by two mirrors. magnification of convex mirror will be......

A plano-convex lens when silvered in the plane side behaves like a concave mirror of focal length $30cm$. However, when silvered on the convex side it behaves like a concave mirror of focal length $10\ cm$. Then the refractive index of its material will be

The radius of a circular current carrying coil is $R$. At what distance from the centre of the coil on its axis, the intensity of magnetic field will be $\frac{1}{2 \sqrt{2}}$ times that at the centre?

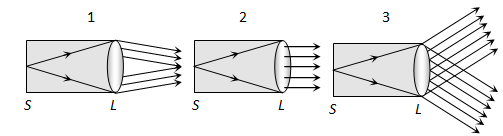

The slit of a collimator is illuminated by a source as shown in the adjoining figures. The distance between the slit S and the collimating lens L is equal to the focal length of the lens. The correct direction of the emergent beam will be as shown in figure
