A spherical mirror produces an image of magnification -1.0 on a screen placed at a distance of 30 cm from the pole of the mirror.
- Write the type of mirror in this case.
- What is the focal length of the mirror?
- What is the nature of the image formed?

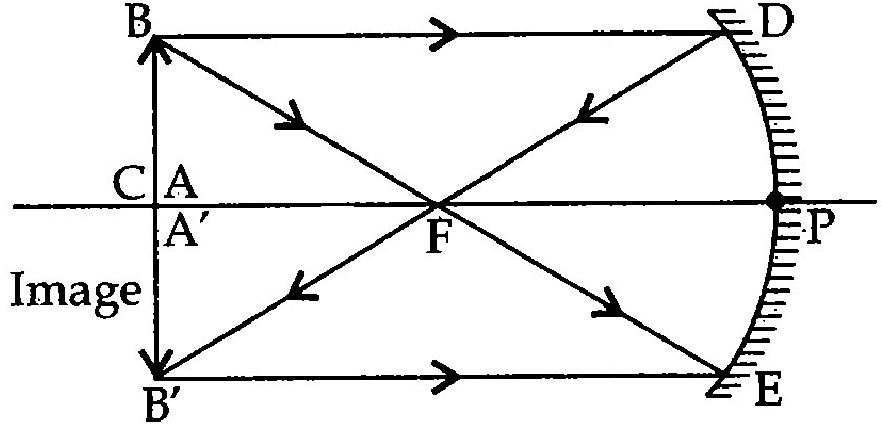

- Draw the ray diagram to show the image formation in this case.
CBSE DELHI - SET 3 2014
Download our app for free and get started
- Spherical mirror.
- Magnification, m = -1
- image is formed on the screen.
- image distance, v = -30 cm (-ve sign for real image)
- Concave mirror.
- $f = ?$
| $\frac{-v}{u}$ | $\Rightarrow$ | $\frac{-(-30)}{u} = -1$ |
| $\Rightarrow 30 = -u$ | $\therefore$ | $u = -30 \text{ cm}$ |
| $\frac{1}{f} = \frac{1}{v} + \frac{1}{u}$ | $\Rightarrow$ | $\frac{1}{f} = \frac{1}{-30} + \frac{1}{-30}$ |
| $\frac{1}{f} = -\frac{1}{30} - \frac{1}{30} = \frac{-2}{30} = \frac{-1}{15}$ | $\therefore$ | $f = -15 \text{ cm}$ |
- Image is real, inverted and same size of the object.
