Light – Reflection and Refraction — Science STD 10 — Question

CBSE BoardEnglish MediumSTD 10ScienceLight – Reflection and Refraction1 Mark
MCQ
A student focussed the Sun rays using an optical device ‘X’ on a screen S as shown.

From this it may be concluded that the device ‘X’ is a (select the correct option)
  • A
    Convex lens of focal length 10 cm.
  • B
    Convex lens of radius of curvature 20 cm.
  • C
    Convex lens of focal length 20 cm.
  • D
    Concave mirror of focal length 20 cm.
✓

Answer

  1. Convex lens of focal length 20 cm.

​​​​​​​​​​​​​​Explanation:

Light rays from infinity are converged at the focal point of the convex lens. Therefore, the focal length of the convex lens is 20 cm.

Hence, the correct option is C.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q-[Phy-1M]" from Light – Reflection and Refraction→Light – Reflection and Refraction — all question types→Science STD 10 question papers→CBSE Board STD 10 question papers→CBSE Board question paper generator→

Similar questions

The front face of a circular wire carrying current behaves like a north pole. The direction of current in this face of circular wire is:
→
The lamps in a house hold circuit are connected in parallel because:
→
If a magnification of, -1(minus 1) is obtained by using a converging lens, then the object has to be placed:
  1. Within f.
  2. At 2f.
  3. Beyond 2f.
  4. At infinity.
→
What is the resistance of a wire if its length is doubled,
→
The disposal of waves produced in a nuclear power plant poses a big problem because it is:
  1. Too heavy.
  2. Highly inflammable.
  3. Extremely foul smelling.
  4. Highly radioactive.
→
To determine the focal length of a convex lens by obtaining a sharp image of a distant object we generally follow the following steps which are not in proper sequence.
  1. Hold the lens between the object and the screen.
  2. Measure the distance between the lens and the screen.
  3. Select a well lit distant object.
  4. Place a screen opposite to the object on the lab table.
  5. Adjust the position of the lens to form a sharp image.
The correct sequence of these steps is:
→
When we pay for our electricity bill, we are paying for the:
→
If two resistors of $25 Ω$ and $15 Ω$ are joined together in series and then placed in parallel with a $15 Ω$ resistor, the effective resistance of the combination is:
→

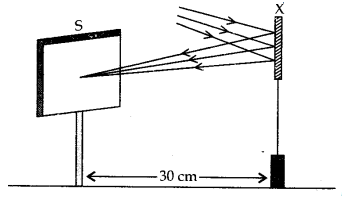

A student focussed the image of a distant object using a device X on a white screen S as shown in the figure. If the distance of the screen from the device is 30 cm, select the correct statement about the device X.
→

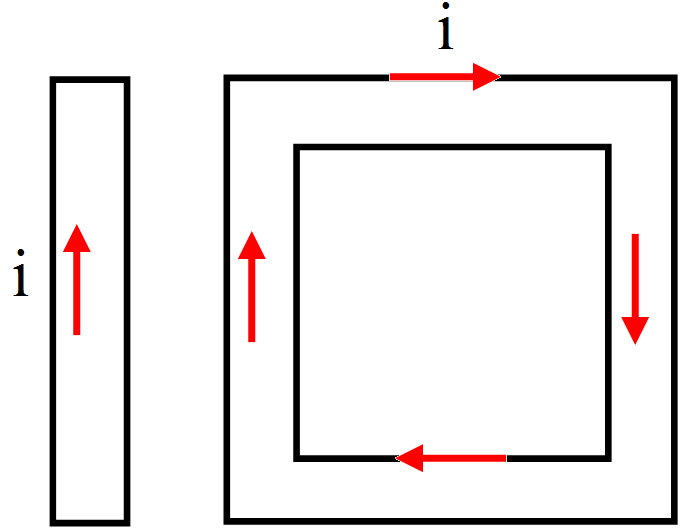

A rectangular loop carrying a current is situated near a long straight wire such that the wire is parallel to one of the sides of the loop and is in the plane of the loop. If a steady current its created in wire as shown in figure below, then the loop will
→
