Light – Reflection and Refraction — Science STD 10 — Question

CBSE BoardEnglish MediumSTD 10ScienceLight – Reflection and Refraction1 Mark
MCQ
A student has obtained an image of a well-illuminated distant object on a screen to determine the focal length, $\text{F}_{1}$  of the given spherical mirror. The teacher then gave him another mirror of focal length, $\text{F}_{2}$  and asked him to obtain a focussed image of the same object on the same screen. The student found that in order to focus the same object using the second mirror, he has to move the mirror away from the screen. From this observation it may be concluded that both the spherical mirrors given to the student were (select the correct option)
  • A
    Concave and $\text{F}_{1} < \text{F}_{2}$
  • B
    Concave and $\text{F}_{1} > \text{F}_{2}$
  • C
    Convex and $\text{F}_{1} < \text{F}_{2}$
  • D
    Convex and $\text{F}_{1} > \text{F}_{2}$
✓

Answer

  1. Concave and F1 < F2.

​​​​​​​​​​​​​​Explanation:

Since the image is focused, the spherical mirror is a concave mirror. For second mirror the distance is increased to focus the image on the screen. Hence, focal length is more than that of first mirror.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q-[Phy-1M]" from Light – Reflection and Refraction→Light – Reflection and Refraction — all question types→Science STD 10 question papers→CBSE Board STD 10 question papers→CBSE Board question paper generator→

Similar questions

Your are given three equal resistances. In how many combinations can they be arranged:
→
One of the following is not a characteristic of a good fuel. This is:
  1. High calorific value.
  2. No emission of smoke.
  3. Smooth burning.
  4. High ignition temperature.
→
One atomic mass unit (u) is equivalent to an energy of:
  1. 931eV.
  2. 9.31MeV.
  3. 1MeV.
  4. 931MeV.
→
Advanced sunrise and delayed sunset is due to ________ of sunlight:
→
As light from a far off star comes down towards the earth:
→
A magnet attracts:
  1. Plastics.
  2. Any metal.
  3. Aluminium.
  4. Iron and steel.
→
For a current in a long straight solenoid N- and S-poles are created at the two ends. Among the following statements, the incorrect statement is:
  1. The field lines inside the solenoid are in the form of straight lines which indicates that the magnetic field is the same at all points inside the solenoid.
  2. The strong magnetic field produced inside the solenoid can be used to magnetise a piece of magnetic material like soft iron, when placed inside the coil.
  3. The pattern of the magnetic field associated with the solenoid is different from the pattern of the magnetic field around a bar magnet.
  4. The N- and S-poles exchange position when the direction of current through the solenoid is reversed.
→
To determine the focal length of a convex lens by obtaining a sharp image of a distant object,the following steps were suggested which are not in proper sequence:
  1. Hold the lens between the object and the screen.
  2. Adjust the position of the lens to form sharp image.
  3. Select a suitable distant object.
  4. Measure the distance between the lens and the screen.
The correct sequence of steps to determine the focal length of the lens is:
→

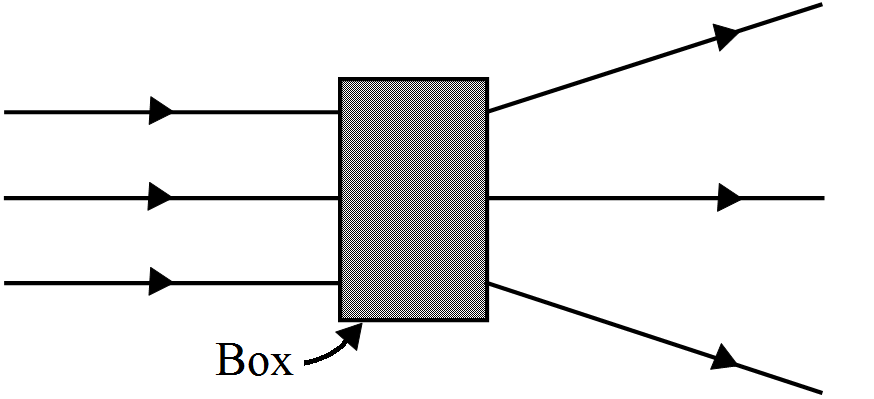

A beam of light is incident through the holes on one side of a box and emerges out through the holes on its opposite side as shown in the following figure:

The box contains:
→
The image formed by a concave mirror is virtual, erect and magnified. The position of object is:
→
