.............. A the current flowing through the resistance R_2 of the circuit shown in fig if the resistance are equal to R

Q: .............. $A$ the current flowing through the resistance $R_2$ of the circuit shown in fig if the resistance are equal to $R_1 = 20\ \Omega, R_2 = 30 \ \Omega$ and $R_3 = 60 \ \Omega$ and potentials of points $1, 2$ and $3$ are equal to $V_1= 20\, V,$ $V_2 = 30\ V$ and $V_3 = 60\ V$

d Suppose $V_{0}$ is the potential at Point $\mathrm{O}$ Apply Nodel Method $\frac{\mathrm{V}_{0}-\mathrm{V}_{1}}{\mathrm{R}_{1}}+\frac{\mathrm{V}_{0}-\mathrm{V}_{2}}{\mathrm{R}_{2}}+\frac{\mathrm{V}_{0}-\mathrm{V}_{3}}{\mathrm{R}_{3}}=0$ $\frac{\mathrm{V}_{0}-20}{20}+\frac{\mathrm{V}_{0}-30}{30}+\frac{\mathrm{V}_{0}-60}{60}=0$ $6 V_{0}=180$ $V_{0}=30 \,V$ $\mathrm{i}_{2}=\frac{\mathrm{V}_{0}-\mathrm{V}_{2}}{\mathrm{R}_{2}}=\frac{30-30}{\mathrm{R}_{2}}=0$

SECTION - A [PHYSICS - MCQ]

GSEB - English Medium

.............. $A$ the current flowing through the resistance $R_2$ of the circuit shown in fig if the resistance are equal to $R_1 = 20\ \Omega, R_2 = 30 \ \Omega$ and $R_3 = 60 \ \Omega$ and potentials of points $1, 2$ and $3$ are equal to $V_1= 20\, V,$ $V_2 = 30\ V$ and $V_3 = 60\ V$

A$2$
B$0.5$
C$0.25$
D$0$

Diffcult

STD 11 Science
NEET
STD 12 - 3. current electricity
Physics

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Download App

Similar Questions

1
A wire of length $L$ and $3$ identical cells of negligible internal resistances are connected in series. Due to current, the temperature of the wire is raised by $\Delta T$ in a time $t$. A number $N$ of similar cells is now connected in series with a wire of the same material and cross-section but of length $2\, L$. The temperature of the wire is raised by the same amount $\Delta T$ in the same time $t$. the value of $N$ is
View Solution
2
In the given circuit, the voltmeter records $5\, volts$. The resistance of the voltmeter in $ohms$ is
View Solution
3
Which arrangement of four identical resistances should be used to draw maximum energy from a cell of voltage $V$
View Solution
4
A heater of $220\, V$ heats a volume of water in $5\,\min$ time. A heater of $110\, V$ heats the same volume of water in ............... $min$
View Solution
5
Ohm's law is true
View Solution
6
Find out the value of current through $2\,\Omega$ resistance for the given circuit ............ $A$
View Solution
7
The charge of an electron is $1.6 × 10^{-19}\,C$. How many electrons strike the screen of a cathode ray tube each second when the beam current is $16\,mA$
View Solution
8
The current $I$ flowing through the given circuit will be $.....A$.
View Solution
9
Find the charge on the capacitor $C$ in the following circuit ............ $\mu C$
View Solution
10

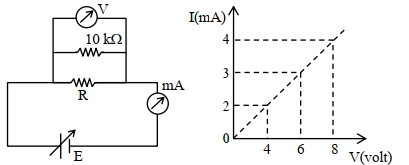

To determine the resistance ($R$) of a wire, a circuit is designed below, The $V-I$ characteristic curve for this circuit is plotted for the voltmeter and the ammeter readings as shown in figure. The value of $\mathrm{R}$ is . . . . . . .$\Omega$
View Solution
