A train with cross-sectional area $S _{ t }$ is moving with speed $v_t$ inside a long tunnel of cross-sectional area $S _0\left( S _0=4 S _{ t }\right)$. Assume that almost all the air (density $\rho$ ) in front of the train flows back between its sides and the walls of the tunnel. Also, the air flow with respect to the train is steady and laminar. Take the ambient pressure and that inside the train to be $p _0$. If the pressure in the region between the sides of the train and the tunnel walls is $p$, then $p _0- p =\frac{7}{2 N } \rho v_{ t }^2$. The value of $N$ is. . . . .
IIT 2020
Download our app for free and get started
Applying Bernoulli's equation
$P_0+\frac{1}{2} \rho v_t^2=P+\frac{1}{2} \rho v^2$
$P_0-P=\frac{1}{2} \rho\left(v^2-v_t^2\right).$ $. . . . . (i)$
From equation of continuity
Also, $4 S _{ t } v _{ t }= v \times 3 S _{ t } \Rightarrow v =\frac{4}{3} v _{ t }$ $. . . . . (ii)$
From $(i)$ and $(ii)$
$P_0-P=\frac{1}{2} \rho\left(\frac{16}{9} v_t^2-v_t^2\right)=\frac{1}{2} \rho \frac{7 v_t^2}{9}$
$\therefore N=9$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1The velocity of water in a river is $18\, km/h$ near the surface. If the river is $5\, m$ deep, find the shearing stress between the horizontal layers of water. The co-efficient of viscosity of water $= 10^{-2}\,,poise$View Solution
- 2If velocity of flow is $4 \,m / s$, then velocity head is .........$m$View Solution
- 3The average mass of rain drops is $3.0\times10^{-5}\, kg$ and their avarage terminal velocity is $9\, m/s$. Calculate the energy transferred by rain to each square metre of the surface at a place which receives $100\, cm$ of rain in a yearView Solution

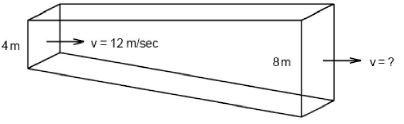

- 4A river gradually deepens, from a depth of $4 \ m$ to a depth of $8\ m$ as shown. The width, $W$, of the river does not change. At the depth of $4 \ m$, the river's speed is $12\ m/sec.$ Its elocity at the $8\ m$ depth is ......... $m/sec$View Solution
