Question
A trolley carries passengers from the ground level located at point $\Lambda$ to up to the top of mountain chateau located at $P$ as shown in Fig. The point $A$ is at a distance of 2000 m from point $C$ at the base of mountain. Here $\alpha=30^{\circ}, \beta=60^{\circ}$.
(i) Assuming the cable is held tight what will be the length of cable?
(a) 2000 m $\qquad$ (b) $2000 \sqrt{3} m$ $\qquad$ (c) $4000 \sqrt{3} m$ $\qquad$ (d) $\frac{4000}{\sqrt{3}} m$
(ii) What will be height of the mountain?
(a) 1000 m $\qquad$ (b) $\frac{2000}{\sqrt{3}} m$ $\qquad$ (c) 2000 m $\qquad$ (d) $2000 \sqrt{3} m$
(iii) What will be the slant height of the mountain?
(a) 4000 m $\qquad$ (b) $\frac{4000}{3} m$ $\qquad$ (c) $4000 \sqrt{3} m$ $\qquad$ (d) $\frac{4000}{\sqrt{3}} m$
(iv) What will be the length of $B C$ ?
(a) 1000 m $\qquad$ (b) $\frac{2000}{3} m$ $\qquad$ (c) $1000 \sqrt{3} m$ $\qquad$ (d) $\frac{1000}{\sqrt{3}} m$
✓

Answer

(i) (d) (ii) (b) (iii) (b) (iv) (b)

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Case study (4 Marks)" from Trigonometric Ratios→Trigonometric Ratios — all question types→Maths STD 10 question papers→CBSE Board STD 10 question papers→CBSE Board question paper generator→

Similar questions

Read the following text carefully and answer the questions that follow: A bird is sitting on the top of a tree, which is $80\ m$ high. The angle of elevation of the bird, from a point on the ground is $45^{\circ}$. The bird flies away from the point of observation horizontally and remains at a constant height. After $2$ seconds, the angle of elevation of the bird from the point of observation becomes $30^{\circ}$. Find the speed of flying of the bird.
$i.$ Find the distance between observer and the bottom of the tree?
$ii$. Find the speed of the bird?
$iii$. Find the distance between second position of bird and observer?
OR
Find the distance between initial position of bird and observer?
→
London eye is an amusement ride consisting of a rotating upright big wheel with multiple passenger-carrying components (commonly referred to as passenger cars, cabins, tubs, capsules, gondolas or pods) attached to the rim in such a way that as the wheel turns, they are kept upright usually by gravity. After taking a ride in London eye, Anu came out from the crowd and was observing her friends who were enjoying the ride. She was curious about the different angles and measures that the wheel will form. She makes a figure as given below.
(i) In Fig. the measure of $\angle R O Q$ is
(a) $60^{\circ}$ $\qquad$ (b) $100^{\circ}$ $\qquad$ (c) $150^{\circ}$ $\qquad$ (d) $90^{\circ}$
(ii) In Fig. 8.33, The measure of $\angle R Q P$ is
(a) $75^{\circ}$ $\qquad$ (b) $60^{\circ}$ $\qquad$ (c) $30^{\circ}$ $\qquad$ (d) $90^{\circ}$
(iii) In Fig. 8.33, the measure of $\angle R S Q$ is
(a) $60^{\circ}$ $\qquad$ (b) $75^{\circ}$ $\qquad$ (c) $100^{\circ}$ $\qquad$ (d) $30^{\circ}$
(iv) In Fig. 8.33, the measure of $\angle O R P$ is
(a) $90^{\circ}$ $\qquad$ (b) $70^{\circ}$ $\qquad$ (c) $100^{\circ}$ $\qquad$ (d) $60^{\circ}$
→
A stable owner has four horses. He usually tie these horses with 7 m long rope to pegs at each corner of a square shaped grass field of 20 m length, to graze in his farm. But tying with rope sometimes results in injuries to his horses, so he decided to build fence around the area so that each horse can graze.
Based on the above, answer the following questions:
(i) Find the area of the square shaped grass field.
(ii) (a) Find the area of the total field in which these horses can graze.
OR
(b) If the length of the rope of each horse is increased from 7 m to 10 m , find the area grazed by one horse. (Use $\pi=3.14$ )
(iii) What is area of the field that is left ungrazed, if the length of the rope of each horse is 7 cm ?
→

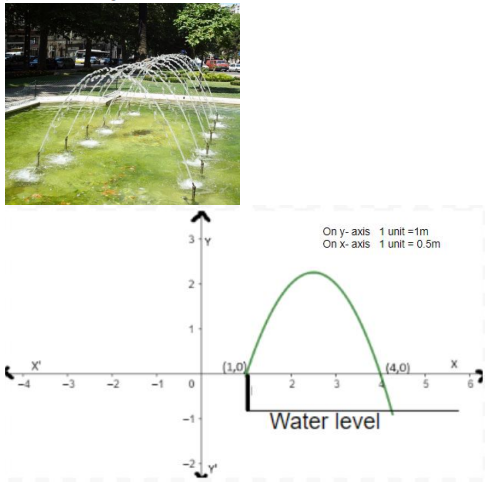

Radha, an aspiring landscape designer, is tasked with creating a visually captivating pool design that incorporates a unique arrangement of fountains. The challenge entails arranging the fountains in such a way that when water is thrown upwards, it forms the shape of a parabola. The graph of one such parabola is given below.
