Question
A tuning fork of unknown frequency makes 5 beats per second with another tuning fork which can cause a closed organ pipe of length 40cm to vibrate in its fundamental mode. The beat frequency decreases when the first tuning fork is slightly loaded with wax. Find its original frequency. The speed of sound in air is 320m/s.
✓

Answer

Given length of the closed organ pipe, $\text{l}=40\text{cm}=40\times10^{-2}\text{m}$

$\text{V}_\text{air}=320$

So, its frequency $\rho=\frac{\text{V}}{4\text{l}}=\frac{320}{4\times40\times10^{-2}}=200\ \text{Hertz}.$

As the tuning fork produces 5 beats with the closed pipe, its frequency must be 195Hz or 205Hz. Given that, as it is loaded its frequency decreases.

So, the frequency of tuning fork = 205Hz.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Sound Waves→Sound Waves — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Light is incident from glass $(\mu=1.50)$ to water $(\mu=1.33).$ Find the range of the angle of deviation for which there are two angles of incidence.
→
Explain electric charge. Verify by experiment that there is repulsion between like charges and attraction between unlike charges.
→
A parallel-plate capacitor of plate area A and plate separation d is charged to a potential difference V and then the battery is disconnected. A slab of dielectric constant K is then inserted between the plates of the capacitor so as to fill the space between the plates. Find the work done on the system in the process of inserting the slab.
→

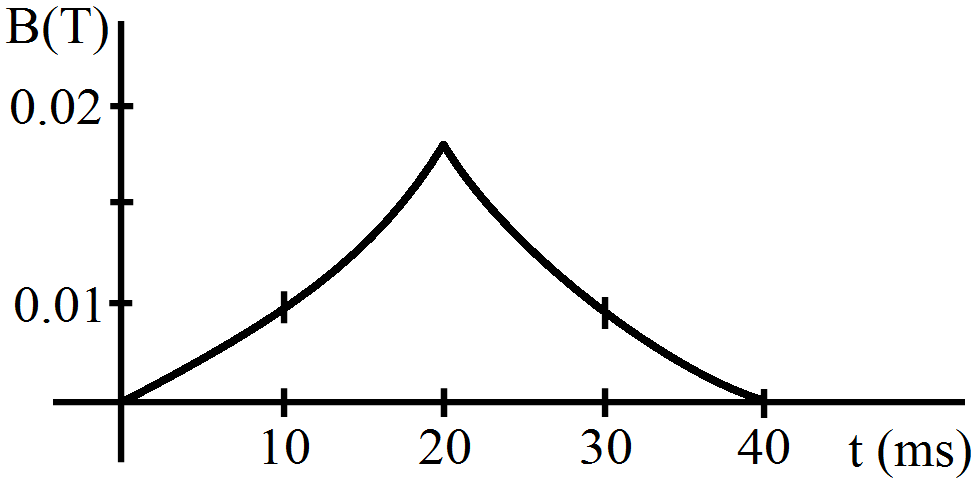

  1. The magnetic field in a region varies as shown in figure. Calculate the average induced emf in a conducting loop of area 2.0 × 10-3m2 placed perpendicular to the field in each of the 10ms intervals shown.
