A uniform conducting wire of length is $24 {a}$, and resistance ${R}$ is wound up as a current carrying coil in the shape of an equilateral triangle of side $'a'$ and then in the form of a square of side $'a'.$ The coil is connected to a voltage source ${V}_{0}$. The ratio of magnetic moment of the coils in case of equilateral triangle to that for square is $1: \sqrt{y}$ where $y$ is ..... .
JEE MAIN 2021, Diffcult
Download our app for free and get started
In triangle shape ${N}_{{t}}=\frac{24 {a}}{3 {a}}=8$
In square ${N}_{{s}}=\frac{24 {a}}{4 {a}}=6$
$\frac{{M}_{{t}}}{{M}_{3}}=\frac{{N}_{{t}} {IA}_{{t}}}{{N}_{{s}} {I}_{{s}}}[{I}$ will be same in both $]$
$=\frac{8 \times \frac{\sqrt{3}}{4} \times a^{2}}{6 \times a^{2}}$
$\frac{{M}_{{t}}}{{M}_{{s}}}=\frac{1}{\sqrt{3}}$
${y}=3$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionAn electron moves along vertical line and away from the observer, then pattern of concentric circular magnetic field lines which are produced due to its motion
- 2Two circular coils $P$ and $Q$of $100$ turns each have same radius of $\pi \mathrm{cm}$. The currents in $\mathrm{P}$ and $\mathrm{R}$ are $1 \mathrm{~A}$ and $2 \mathrm{~A}$ respectively. $\mathrm{P}$ and $\mathrm{Q}$ are placed with their planes mutually perpendicular with their centers coincide. The resultant magnetic field induction at the center of the coils is $\sqrt{\mathrm{x}} \mathrm{mT}$, where X=___.View Solution
$\left[\text { Use } \mu_0=4 \pi \times 10^{-7} \mathrm{TmA}^{-1}\right]$
- 3A thin flexible wire of length $\mathrm{L}$ is connected to two adjacent fixed points and carries a current $\mathrm{I}$ in the clockwise direction, as shown in the figure. When the system is put in a uniform magnetic field of strength $B$ going into the plane of the paper, the wire takes the shape of a circle. The tension in the wire isView Solution
- 4A coil having $N$ $turns$ is wound tightly in the form of a spiral with inner and outer radii $a$ and $b$ respectively. When a current $I$ passes through the coil, the magnetic field at the centre isView Solution
- 5A galvanometer of resistance $G$ is converted into a voltmeter of range $0-1\, V$ by connecting a resistance $R _{1}$ in series with it. The additional resistance that should be connected in series with $R _{1}$ to increase the range of the voltmeter to $0-2\, V$ will beView Solution
- 6Two wires each carrying a steady current $I$ are shown in four configurations in Column $I$. Some of the resulting effects are described in Column $II$. Match the statements in Column $I$ with the statements in Column $II$ and indicate your answer by darkening appropriate bubbles in the $4 \times 4$ matrix given in the $ORS$.View Solution

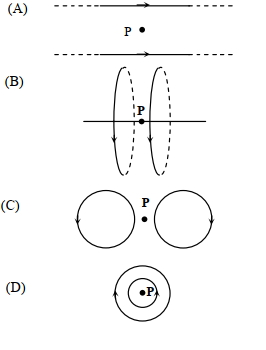

Column $I$ Column $II$ $(A)$ Point $P$ is situated midway between the wires. $Image$ $(p)$ The magnetic fields $(B)$ at $P$ due to the currents in the wires are in the same direction. $(B)$ Point $P$ is situated at the mid-point of the line joining the centers of the circular wires, which have same radii. $Image$ $(q)$ The magnetic fields $(B)$ at $P$ due to the currents in the wires are in opposite directions. $(C)$ Point $P$ is situated at the mid-point of the line joining the centers of the circular wires, which have same radii. $Image$ $(r)$ There is no magnetic field at $P$. $(D)$ Point $P$ is situated at the common center of the wires. $Image$ $(s)$ The wires repel each other.
