14. waves and sound — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics14. waves and sound1 Mark
MCQ
A uniform string resonates with a tuning fork, at a maximum tension of $32 \,N$. If it is divided into two segments by placing a wedge at a distance one-fourth of length from one end, then to resonance with same frequency the maximum value of tension for string will be ........... $N$
  • ✓
    $2$
  • B
    $4$
  • C
    $8$
  • D
    $16$
✓

Answer

Correct option: A.
$2$
a
(a)

Let length be $l$ .

$f=\sqrt{\frac{T}{\mu}} \times \frac{1}{2 l} \quad \dots (i)$

$f=\sqrt{\frac{T}{\mu}} \times \frac{4}{2 l} \quad \dots (ii)$

or $f=\sqrt{\frac{T}{\mu}} \times \frac{4}{6 l} \quad \dots (iii)$.

Equating $(i)$ $(ii)$ and $(i)$ and $(iii)$

$\sqrt{\frac{T}{T_1}}=4$ and $\sqrt{\frac{T}{T_2}}=\frac{4}{3}$

Put $T=32 \,N$

$\frac{32}{16}=T_1 \frac{9}{16} \times 32=T_2$

$T_1=2 N T_2=18 \,N$

of the options on $T_1$ is right.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. waves and sound→14. waves and sound — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

$A$ non uniform rod $OA$ of linear mass density $\lambda = \lambda_0x$ $(\lambda_0 =$ const.) is suspended from ceiling with hinge joint $O$ & light string as shown in figure. Find the angular acceleration of rod just after the string is cut.
→
A ball is dropped downwards. After $1$ second another ball is dropped downwards from the same point. What is the distance between them after $3\, seconds$...........$m$
→
There is no change in the volume of a wire due to change in its length on stretching. The poisson's ratio of the material of the wire is
→
The potential energy of a $1\ kg$ particle free to move along the $x-$axis is given by : $U\left( x \right) = \left( {\frac{{{x^4}}}{4} - \frac{{{x^2}}}{2}} \right)$ $J $ The total mechanical energy of the particle is $2\ J$. Then, the maximum speed(in $m/s$) is
→

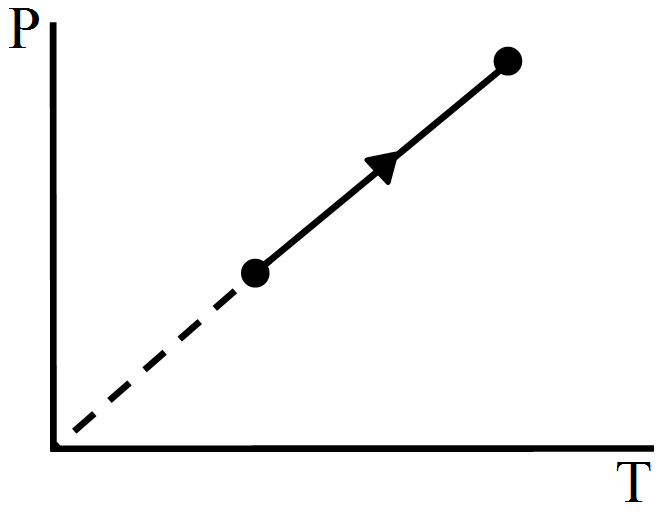

The process on an ideal gas, shown in figure. is:
→
