Question

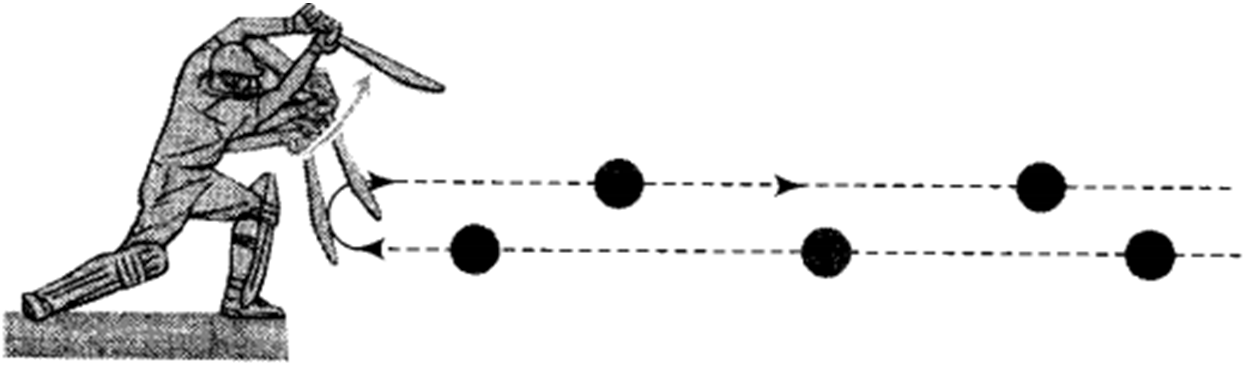

A uniformly moving cricket ball is turned back by hitting it with a bat for a very short time interval. Show the variation of its acceleration with time. (Take acceleration in the backward direction as positive).
✓
Answer
Impulsive Force is generated by the bat: If we ignore the effect of gravity just by analyzing the motion of ball in horizontal direction only, then ball moving uniformly will return back with the same speed when a bat hits it. Acceleration of the ball is zero just before it strikes the bat. When the ball strikes the bat, it gets accelerated due to the applied impulsive force by the bat.

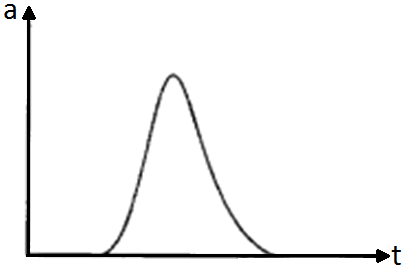

The variation of acceleration with time is shown in the graph.
The variation of acceleration with time is shown in the graph. Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

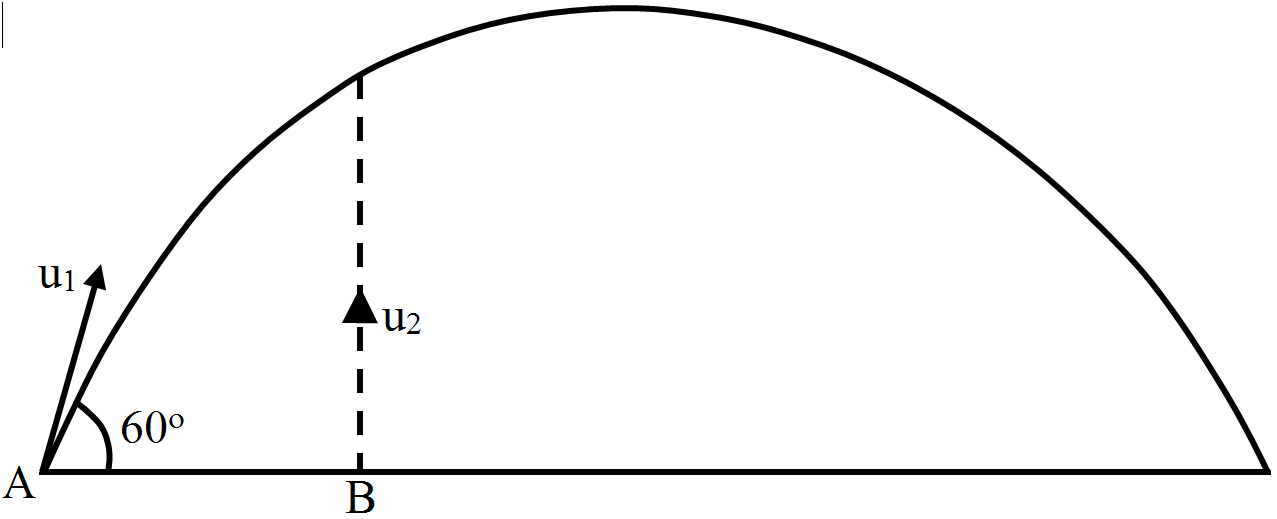

A body is projected with the velocity $u_1$ from the point A as shown in figure. At the same time another body is projected vertically upwards with the velocity $u_2$ from the point B. What should be the value of $\frac{\text{u}_1}{\text{u}_2}$ for both the bodies to collide?
→The resultant of two vector $\vec{P}$ and $\vec{Q}$ is $\vec{R}$. If the direction of $\vec{Q}$ is reversed, then the resulting vector becomes $\vec{S}$. Then prove that,
$
R ^2+ S ^2=2\left( P ^2+ Q ^2\right)
$
→$
R ^2+ S ^2=2\left( P ^2+ Q ^2\right)
$
A body of mass 0.5kg travels in a straight line with velocity $\text{v}=\text{ax}^{3/2}$ where $\text{a}=5\text{m}^{-1/2}\text{s}^{-1}.$ What is the work done by the net force during its displacement from x = 0 to x = 2m?
→Explain the pressure exerted by an ideal gas and also find the average kinetic energy per molecule of the gas.
Find the speed of the electron in the ground state of a hydrogen atom. The description of ground state is given in the previous problem.
Can we find the mass of a photon by the definition p = mv?
The temperature and the relative humidity are $300K$ and $20\%$ in a room of volume $50m^3$. The floor is washed with water, $500g$ of water sticking on the floor. Assuming no communication with the surrounding, find the relative humidity when the floor dries. The changes in temperature and pressure may be neglected. Saturation vapour pressure at $300K = 3.3kPa$.
→Air is streaming past a horizontal air plane wing such that its speed is $120 \mathrm{~ms}^{-1}$ over the upper surface and $90 \mathrm{~ms}^{-1}$ at the lower surface. If the density of air is $1.3 \mathrm{~kg} \mathrm{~m}^{-3}$, find the difference in pressure between the top and bottom of the wing. If wing is 10 m long and has an average width of 2 m , calculate the gross lift of the wing.
→An atmospheric pressure is 106 dyne/cm². Find its value in SI unit system.
A stone is dropped from a height ‘h'. Prove that the energy at any point in its path is mgh.
