A wire of density $9 \times 10^3 \,kg/m^3$ is stretched between two clamps one meter apart and is subjected to an extension of $4.9 \times 10^{-4} \,m$. What will be the lowest frequency of the transverse vibrations in the wire ... $Hz$ $[Y = 9 \times 10^{10} \,N/m^2]$ ?

A
$38$
B
$36$
✓
$35$
D
$32$

✓

Answer

Correct option: C.

$35$

c
$Y = \frac{{T/\pi {r^2}}}{{\Delta \ell /\ell }} = \frac{{T\ell }}{{{\pi ^2}\Delta \ell }} \Rightarrow T = \frac{{Y\pi {r^2}\Delta \ell }}{\ell }$

$V=\sqrt{\frac{T}{m}}=\sqrt{\frac{Y \pi r^{2} \Delta \ell}{\pi r^{2} d \ell}}=\sqrt{\frac{Y \Delta \ell}{\ell d}}=70 \mathrm{\,m} / \mathrm{s}$

Lowest Frequency $=\frac{V}{2 \ell}=\frac{70}{2}=35 \mathrm{\,Hz}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. waves and sound→14. waves and sound — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Consider the following statements. The total energy of a particle executing simple harmonic motion depends on its

$(1)$ Amplitude $(2) $ Period $(3)$ Displacement

Of these statements

Let $\overrightarrow A = \hat iA\,\cos \theta + \hat jA\,\sin \theta $ be any vector. Another vector $\overrightarrow B $ which is normal to $\overrightarrow A$ is

A solid cylinder rolls down an inclined plane from a height $h$. At any moment the ratio of rotational kinetic energy to the total kinetic energy would be

A metallic sphere having mass $2\ kg$ is moving with a velocity of $10\ m/ s.$ The momentum of the sphere in $\ce{kg metre/ sec.}$ will be$-$

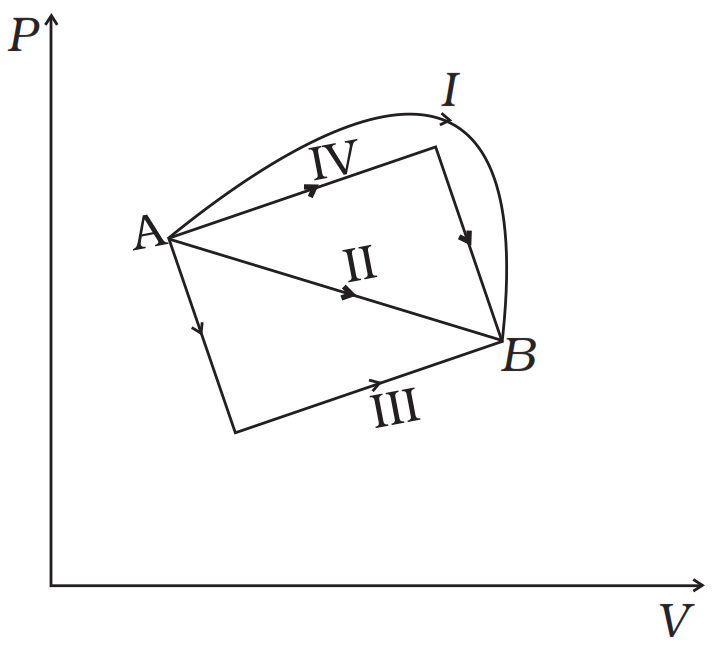

Figure. shows the $P-V$ diagram of an ideal gas undergoing a change of state from $A$ to $B$. Four different parts $\text{I, II, III}$ and $\text{IV}$ as shown in the figure may lead to the same change of state.
