An electron and a proton enter a magnetic field perpendicularly. Both have same kinetic energy. Which of the following is true
  • A
    Trajectory of electron is less curved
  • ✓
    Trajectory of proton is less curved
  • C
    Both trajectories are equally curved
  • D
    Both move on straight-line path
✓

Answer

Correct option: B.
Trajectory of proton is less curved
b
(b) We have $qvB = \frac{{m{v^2}}}{r}$ or $r = \frac{{mv}}{{qB}} = \frac{{\sqrt {2mK} }}{{qB}}$
For same kinetic energy $K$, we have $r \propto \sqrt m $
Hence path of proton will have larger $r$ and is therefore less curved.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Radius of curvature of concave mirror is $40cm$ and the size of image is twice as that of object, then the object distance is....$cm$
→
A galvanometer is used in laboratory for the null point in electrical experiments. If, on passing a current of $6 \,m A$ it produces a deflection of $2^{\circ},$ its figure of merit is close to :
→
A circuit connected to an $ac$ source of $emf$ $e = e_0\, sin\, (1000t)$ with $t$ in seconds, gives a phase difference of $\frac{\pi }{4}$ between the $emf$ $e$ and current $i$. Which of the following circuits will exhibit this?
→
A potentiometer $PQ$ is set up to compare two resistances as shown in the figure. The ameter $A$ in the circuit reads $1.0\, A$ when two way key $K_3$ is open. The balance point is at a length $l_1\, cm$ from $P$ when two way key $K_3$ is plugged in between $2$ and $1$ , while the balance point is at a length $l_2\, cm$ from $P$ when key $K_3$ is plugged in between $3$ and $1$ . The ratio of two resistances $\frac{{{R_1}}}{{{R_2}}}$ is found to be
→
Which of the following graphs correctly represents the variation of $\beta = - (dV/dP)/V$ with $P$ for an ideal gas at constant temperature
→
A cylindrical rod having temperature ${T_1}$ and ${T_2}$ at its ends. The rate of flow of heat is ${Q_1}$ $cal/sec$. If all the linear dimensions are doubled keeping temperature constant then rate of flow of heat ${Q_2}$ will be
→

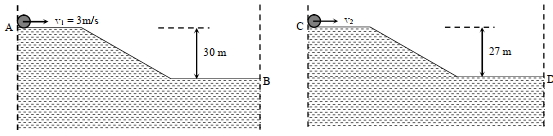

Two identical uniform discs roll without slipping on two different surfaces $AB$ and $CD$ (see figure) starting at $A$ and $C$ with linear speeds $v _1$ and $v _2$, respectively, and always remain in contact with the surfaces. If they reach $B$ and $D$ with the same linear speed and $v_1=3 \ m / s$, then $v_2$ in $m / s$ is $\left(g=10 \ m / s ^2\right)$
→
