Question
An electron is accelerated through a potential difference of 100 volts. What is the de-Broglie wavelength associated with it? To which part of the electromagnetic spectrum does this value of wavelength correspond?
✓
Answer
$\lambda = \frac{\text{h}}{\sqrt{2\text{meV}}}\text{ or } \lambda = \frac{12.27}{\sqrt{\text{V}}}\mathring{\text{A}}$
$\lambda =\frac{12.27}{\sqrt{100}}\mathring{\text{A}} = \frac{12.27}{10}\mathring{\text{A}}=1.227\mathring{\text{A}}$
This wavelength corresponds to the X rays.
$\lambda =\frac{12.27}{\sqrt{100}}\mathring{\text{A}} = \frac{12.27}{10}\mathring{\text{A}}=1.227\mathring{\text{A}}$
This wavelength corresponds to the X rays.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Draw a plot of potential energy of a pair of nucleons as a function of their separation. What is the significance of negative potential energy in the graph drawn?
Two electric bulbs whose resistances are in the ratio 1 : 2 are connected in parallel to a source of constant voltage. What will be the ratio of power dissipation in these wires?

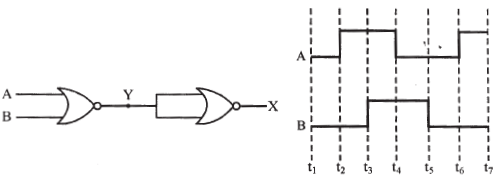

Draw the output waveform at X, using the given inputs A and B for the logic circuit shown below. Also, identify the logic operation performed by this circuit.
