Heat Transfer. — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsHeat Transfer.5 Marks
Question
An icebox almost completely filled with ice at $0^\circ C$ is dipped into a large volume of water at $20^\circ C$. The box has walls of surface area $2400cm^2$, thickness $2.0mm$ and thermal conductivity $0.06\text{Wm}^{-1}{^{\circ}}\text{C}^{-1}.$ Calculate the rate at which the ice melts in the box. Latent heat of fusion of ice $= 3.4\times10^5\text{Jkg}^{-1}.$
✓

Answer

$\text{A}=2400\text{cm}^2=2400\times10^{-4}\text{m}^2$$\ell=2\text{mm}=2\times10^{-3}\text{m}$
$\text{K}=0.06\text{w/m-}^\circ\text{C}$
$\theta_1=20^\circ\text{C}$
$\theta_2=0^\circ\text{C}$
$\frac{\text{Q}}{\text{t}}=\frac{\text{KA}(\theta_1-\theta_2)}{\ell}$
$=\frac{0.06\times2400\times10^{-4}\times20}{2\times10^{-3}}$
$=24\times6\times10^{-1}\times10$
$=24\times6=144\text{J/sec}.$
Rate in which ice melts $=\frac{\text{mL}_\text{f}}{\text{t}}$
$\Rightarrow\frac{\Delta\text{Q}}{\Delta\text{t}}=\Big(\frac{\text{m}}{\text{t}}\Big)\text{L}_\text{f}$
$\Rightarrow144=\Big(\frac{\text{m}}{\text{t}}\Big)\times3.4\times10^5$
$\Rightarrow\frac{\text{m}}{\text{t}}=\frac{144}{3.4\times10^{5}}\text{kg/s}$
$\Rightarrow\frac{\text{m}}{\text{t}}=\frac{144\times60\times60}{3.4\times10^5}\text{kg/h}$
$\Rightarrow\frac{\text{m}}{\text{t}}=1.52\text{kg/h}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Heat Transfer.→Heat Transfer. — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

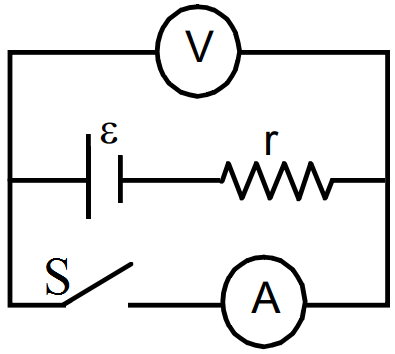

Figure. shows an arrangement to measure the emf $\in$ and internal resistance r of a battery. The voltmeter has a very high resistance and the ammeter also has some resistance. The voltmeter reads 1.52V when the switch S is open. When the switch is closed, the voltmeter reading drops to 1.45V and the ammeter reads 1.0A. Find the emf and the internal resistance of the battery.
→
A hill is 500m high. Supplies are to be sent across the hill using a canon that can hurl packets at a speed of 125m/ s over the hill. The canon is located at a distance of 800m from the foot of hill and can be moved on the ground at a speed of 2m/ s; so that its distance from the hill can be adjusted. What is the shortest time in which a packet can reach on the ground across the hill? Take $g =10m/ s^2$.
→
Two large conducting plates are placed parallel to each other with a separation of $2.00cm$ between them. An electron starting from rest near one of the plates reaches the other plate in $2.00$ microseconds. Find the surface charge density on the inner surfaces.
→
Two trains each having a speed of $30\ km/ hr$ are headed at each other on the same track. A bird that can fly at $60\ km/ hr$ flies off from one train, when they are $60\ km$ apart, and heads directly for the other train. On reaching the other train, it flies directly back to the first, and so forth.
  1. How many trips can the bird make from one train to the other before they crash?
  2. What is the total distance the bird travels?
→
An aluminium can of cylindrical shape contains $500cm^3$ of water. The area of the inner cross section of the can is $125cm^2$. All measurements refer to $10^\circ C$. Find the rise in the water level if the temperature increases to $80^\circ C$. The coefficient of linear expansion of aluminium = $23 \times {10^{-6}} { ^\circ C}^{-1}$ and the average coefficient of volume expansion of water = $3.2 \times {10^{-4}} { ^\circ C}^{-1}$ respectively.
→
A meter stick held vertically, with one end on the ground, is then allowed to fall. What is the value of the radial and tangential acceleration of the top end of the stick when the stick has turned through on angle $\theta?$ What is the speed with which the top end of the stick hits the ground? Assume that the end of the stick in. contact with the ground does not slip.
→
A solid cylinder of mass M and radius R has a light flexible rope wound around it. The rope carries a mass m at its free end. The mass is rest at a height h above the floor. Find the angular velocity of the cylinder at the instant the mass m, after release, strikes the floor. Assume friction to be absent and the cylinder to rotate about its own axis.
→
Find the increase in surface energy when a large drop of water is sprayed into small droplets.
→
A long, straight wire carries a current i. Let $B_1$, be the magnetic field at a point Pat a distance d from the wire. Consider a section of length l of this wire such that the point P lies on a perpendicular bisector of the section. Let B2 be the magnetic field at this point due to this section only. Find the value of $\frac{\text{d}}{\text{l}}$ so that $B_2$ differs from $B_1$, by $1\%$.
→
An insulated container containing monoatomic gas of molar mass m is moving with a velocity $v_0$. If the container is suddenly stopped, find the change in temperature.
→
