An object 4 cm in height, is placed at 15 cm in front of a concave mirror of focal length 10 cm. At what distance from the mirror should a screen be placed to obtain a sharp image of the object. Calculate the height of the image.
CBSE DELHI - SET 1 2017
Download our app for free and get started
$h_1=+4 cm, f=-10 cm, u=-15 cm, v=?, h_2=? \frac{1}{f}=\frac{1}{v}+\frac{1}{u}$
$\Rightarrow$ $\frac{1}{\text{v}}=\frac{1}{\text{f}}-\frac{1}{\text{u}}$
$\frac{1}{\text{v}}=\frac{1}{\text{-10cm}}-\frac{1}{\text{-15cm}}$
$\therefore\text{v}=-30\text{cm}$
$\frac{\text{h}_2}{\text{h}_1}=-\frac{\text{v}}{\text{u}}$
$\because\text{h}_2=-\frac{\text{v}}{\text{u}}\times\text{h}_1$
$=-\frac{-30\text{cm}}{-15\text{cm}}\times4\text{cm}$
$=-8\text{cm}$
$\Rightarrow$ $\frac{1}{\text{v}}=\frac{1}{\text{f}}-\frac{1}{\text{u}}$
$\frac{1}{\text{v}}=\frac{1}{\text{-10cm}}-\frac{1}{\text{-15cm}}$
$\therefore\text{v}=-30\text{cm}$
$\frac{\text{h}_2}{\text{h}_1}=-\frac{\text{v}}{\text{u}}$
$\because\text{h}_2=-\frac{\text{v}}{\text{u}}\times\text{h}_1$
$=-\frac{-30\text{cm}}{-15\text{cm}}\times4\text{cm}$
$=-8\text{cm}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionState the laws of refraction of light. Explain the term ‘absolute refractive index of a medium’ and write an expression to relate it with the speed of light in vacuum.
- 2View SolutionGive three examples of materials that refract light rays. What happens to the speed of light rays when they enter these materials?
- 3View SolutionThe optical prescription for a pair of spectacles is:
Right eye: 3.50D, Left eye: 4.00D- Are these lenses thinner at the middle or at the edges?
- Which lens has a greater focal length?
- Which is the weaker eye?
- 4View SolutionAn object 20cm from a spherical mirror gives rise to a virtual image 15cm behind the mirror. Determine the magnification of the image and the type of mirror used.
- 5View SolutionA 3 cm tall object is placed 18 cm in front of a concave mirror of focal length 12 cm. At what distance from the mirror should a screen be placed to see a sharp image of the object on the screen. Also calculate the height of the image formed.
- 6a. What is the focal length of the lens used in sunglasses?View Solution

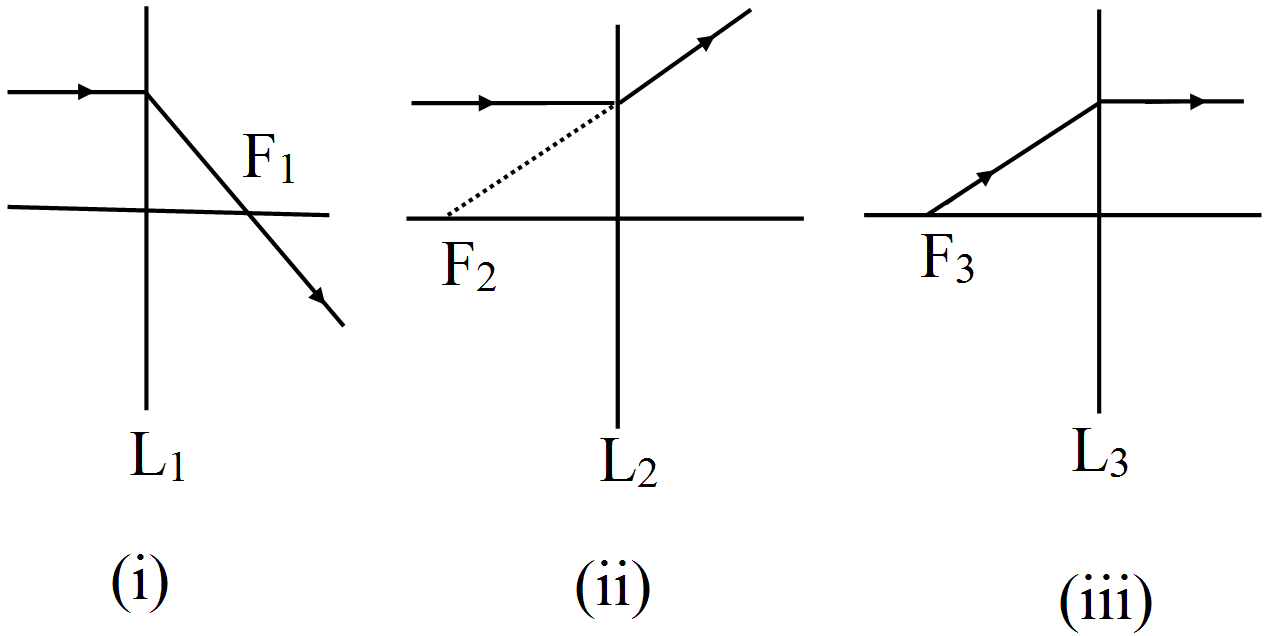

b. The following figures show the path of light rays through three lenses marked $L_1, L_2$, and $L_3$ and their focal points $F_1, F_2$, and $F_3$, respectively. Identify the nature of lenses.
