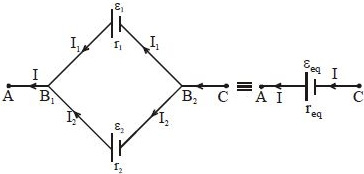

Consider a parallel combination of the cellsshown in the figure.The potential difference in between $B_1$ and $B_2$ is
  • A${\rm{V  =  }}{\varepsilon _{eq}} - I{r_{eq}}$
  • B${\rm{V  =  }}{\varepsilon _2} - I{r_2}$
  • C${\rm{V  =  }}{2\varepsilon _{eq}} - I{r_{eq}}$
  • D${\rm{V  =  }}{\varepsilon _1} - 2I{r_1}$
Medium
