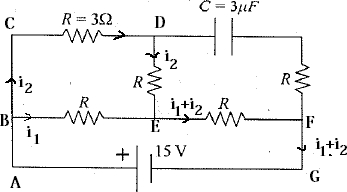

In the circuit shown, the cell is ideal, with $emf$ $=$ $15$ $V$. Each resistance is of $3 $ $\Omega$ . The potential difference across the capacitor is.....$V$
  • A$0$
  • B$9$
  • C$12$
  • D$15$
Advanced
