Question
Construct a right$-$angled triangle in which Side $DE = 6 \ cm$ and $\angle E = 30^\circ , \angle D = 90^\circ $
✓
Answer

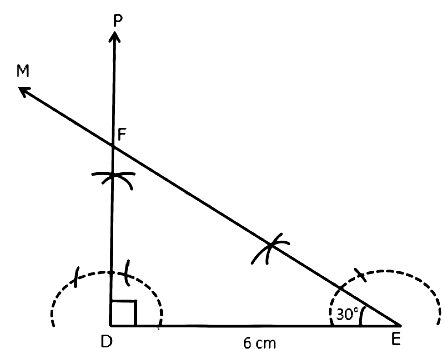

Steps:
$1$. Draw $DE = 6\ cm.$
$2$. At $D$, construct $\angle PDE = 90^\circ $
$3$. With $E$ as centre, draw $\angle DEM = 30^\circ $
$4$. Ray $DP$ and ray $EM$ intersect at $F.$
Thus, $\text{DEF}$ is the required triangle.
$1$. Draw $DE = 6\ cm.$
$2$. At $D$, construct $\angle PDE = 90^\circ $
$3$. With $E$ as centre, draw $\angle DEM = 30^\circ $
$4$. Ray $DP$ and ray $EM$ intersect at $F.$
Thus, $\text{DEF}$ is the required triangle.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In a triangle, the sum of two angles is $139^\circ $ and their difference is $5^\circ $; find each angle of the triangle.

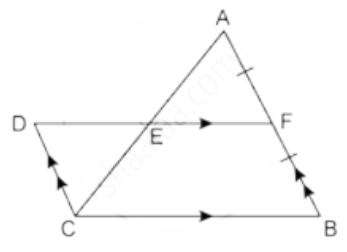

→In the given figure $AF=B F$ and $\text{DCBF}$ is a parallelogram. If the area of $\triangle A B C$ is $30$ square units, find the area of the parallelogram $\text{DCBF}.$
