Question
Deduce the expression for the electrostatic energy stored in a capacitor of capacitance 'C' and having charge 'Q'.
How will the (i) energy stored and (ii) the electric field inside the capacitor be affected when it is completely filled with a dielectric material of dielectric constant 'K'?
✓

Answer

Potential difference between the plates of capacitor
V = q/C
Work done to add additional charge dq on the capacitor
dw = V x dq

= (q/C) x dq

 $\therefore$Total energy stored in the capacitor

$\text{U} = \int\text{dw} = \int_{0}^{Q}\frac{\text{q}}{\text{c}}\text{dq} = \frac{1}{2}\frac{\text{Q}^{2}}{\text{c}}$

When battery is disconnected:

  1. Energy stored will be decreased or energy stored = 1/K times the initial energy.
  2. Electric field would decrease or E’ = E/K.

Alternate Answer

When battery is connected:

  1. Energy stored will increase or become K times the initial energy.
  2. Electric field will not change.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

A parallel-plate capacitor with plate area 20cm2 and plate separation 1.0mm is connected to a battery. The resistance of the circuit is $10\text{k}\Omega.$ Find the time constant of the circuit.
→
  1. Define mutual inductance and write its S.I. unit.

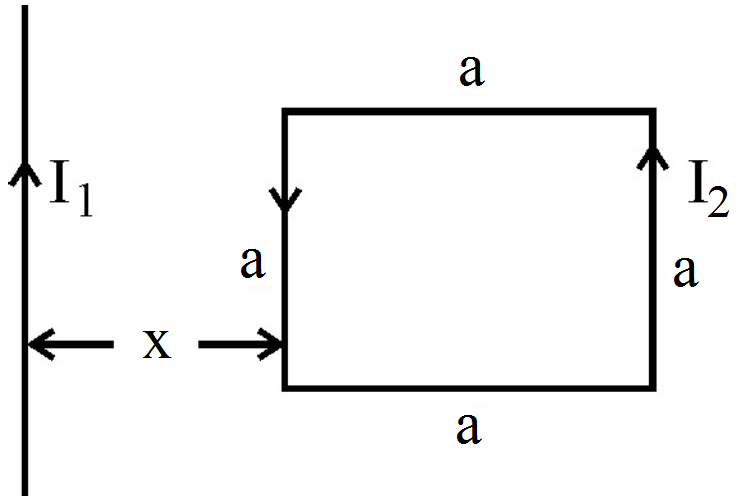

  2. A square loop of side ‘a’ carrying a current I2 is kept at distance x from an infinitely long straight wire carrying a current I1 as shown in the figure. Obtain the expression for the resultant force acting on the loop.

→
