Light – Reflection and Refraction — Science STD 10 — Question

CBSE BoardEnglish MediumSTD 10ScienceLight – Reflection and Refraction3 Marks
Question
Draw a labelled ray diagram to show how a ray of light passes through a parallel sided glass block:
  1. If it hits the glass block at 90° (that is, perpendicular to the glass block).
  2. If it hits the glass block at an angle other than 90° (that is, obliquely to the glass block).
✓

Answer

  1. If ray of light hits the block at 90°

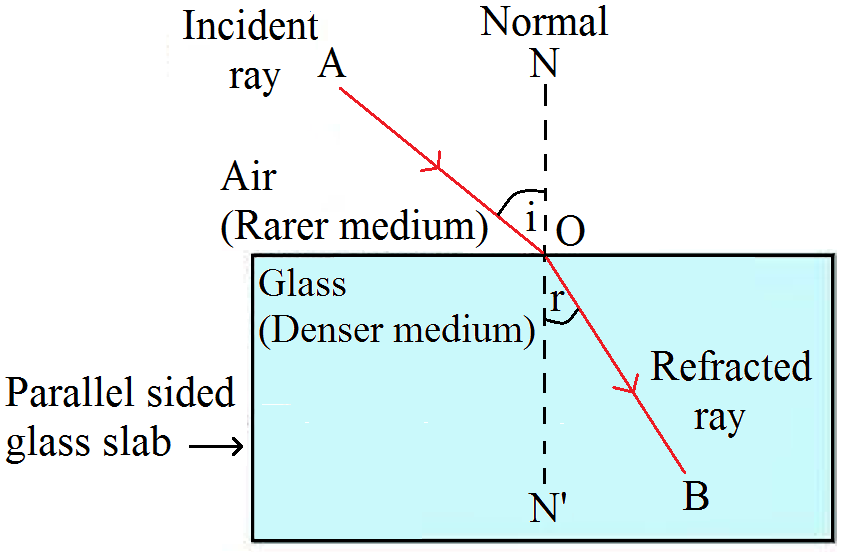

  1. If ray of light hits the block other than the 90°
