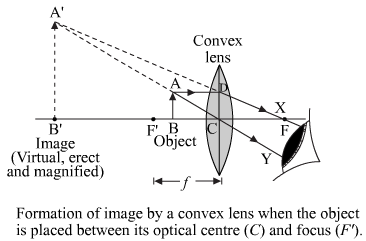

Draw a ray diagram to show the formation of a virtual magnified image of an object by a convex lens. In your diagram, the position of object and image with respect to the principal focus should be shown clearly.
Download our app for free and get started
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1AB and CD, two spherical mirrors, form parts of a hollow spherical ball with its centre at O as shown in the diagram. If arc $\text{AB}=\frac{1}{2}$ arc CD, what is the ratio of their focal lengths? State which of the two mirrors will always form virtual image of an object placed in front of it and why.View Solution
- 2View SolutionHow does the light have to enter the glass:
- To produce a large amount of bending?
- For no refraction to happen?
- 3View SolutionAn object is placed at a distance of 15 cm. from a convex lens of focal length 20 cm. List four characteristics (nature, position, etc.) of the image formed by the lens.
- 4View SolutionState the two laws of reflection of light.
- 5View SolutionAn extended object in the form of an arrow pointing upward has been placed in front of plane mirror. Draw a labelled ray-diagram to show the formation of its image.
- 6View SolutionThe lens A produces a magnification of, -0.6 whereas lens B produces a magnification of +0.6:
- What is the nature of lens A?
- What is the nature of lens B?
- 7View SolutionDescribe the nature of image formed when the object is placed at a distance of 20cm from a concave mirror of focal length 10cm.
- 8View Solution“A ray of light incident on a rectangular glass slab immersed in any medium emerges parallel to itself.” Draw labeled ray diagram to justify this statement.
- 9View SolutionThe focal length of a lens is +150mm. What kind of lens is it and what is its power?
- 10View SolutionA ray of light travelling in air enters obliquely into water. Does the light ray bend towards the normal or away from the normal? Why?
