Question
Draw ray diagrams showing the image formation by a convex lens when an object is placed:
At infinity.
At infinity.
✓
Answer

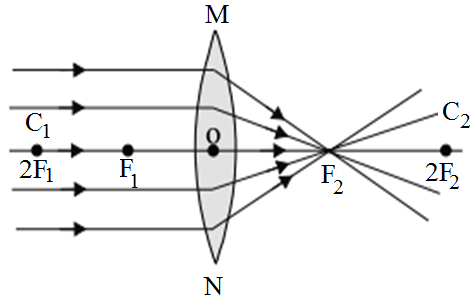

The real, inverted and highly reduced image forms at focus F2 on the other side of the object when the object is placed at infinity.
