Question
Explain current sensitivity and voltage sensitivity of galvanometer.
✓
Answer
Current Sensitivity :
→For moving coil Galvanometer,
$\phi=\frac{ NBA }{k} \cdot I$
Where, $N =$ number of turns in coil
$A =$ area of coil
$k=$ the torsional constant of spring
$B =$ magnetic field
$I=$ current passing through the coil.
→The deflection per unit current is called the current sensitivity of the galvanometer.
$\therefore \frac{\phi}{ I }=\frac{ BAN }{k}$
→From, equation (2) it is clear that to increase the current sensitivity of galvanometer of coil, number of turns $( N )$ are increased.
Voltage Sensitivity :
→Multiplying $\frac{1}{R}$ on the both sides of equation (2), we get.
$\begin{aligned}
\frac{\phi}{ IR } & =\frac{ BAN }{k R } \\
\therefore \quad \frac{\phi}{ V } & =\frac{ BAN }{k R }
\end{aligned}$
→The deflection per unit voltage is known as the voltage sensitivity of galvanometer.
→Equation (3) shows that if the number of turns in the coil is increased, the resistance of coil also increases, So that the voltage sensitivity remains constant.
→For moving coil Galvanometer,
$\phi=\frac{ NBA }{k} \cdot I$
Where, $N =$ number of turns in coil
$A =$ area of coil
$k=$ the torsional constant of spring
$B =$ magnetic field
$I=$ current passing through the coil.
→The deflection per unit current is called the current sensitivity of the galvanometer.
$\therefore \frac{\phi}{ I }=\frac{ BAN }{k}$
→From, equation (2) it is clear that to increase the current sensitivity of galvanometer of coil, number of turns $( N )$ are increased.
Voltage Sensitivity :
→Multiplying $\frac{1}{R}$ on the both sides of equation (2), we get.
$\begin{aligned}
\frac{\phi}{ IR } & =\frac{ BAN }{k R } \\
\therefore \quad \frac{\phi}{ V } & =\frac{ BAN }{k R }
\end{aligned}$
→The deflection per unit voltage is known as the voltage sensitivity of galvanometer.
→Equation (3) shows that if the number of turns in the coil is increased, the resistance of coil also increases, So that the voltage sensitivity remains constant.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A compound microscope forms an inverted image of an object. In which of the following cases it is kely to create difficulties?
- Looking at small germs.
- Looking at circular spots.
- Looking at a vertical tube containing some water.
A $15.0 \mu F$ capacitor is connected to a $220 V , 50 Hz$ source. Find the capacitive reactance and the current (rms and peak) in the circuit. If the frequency is doubled, what happens to the capacitive reactance and the current?
→The temperature and the dew point in an open room are 20°C and 10°C. If the room temperature drops to 15°C, what will be the new dew point?

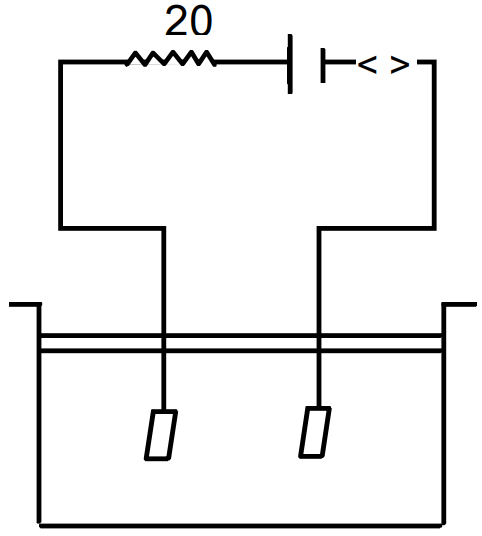

Figure shows an electrolyte of AgCl through which a current is passed. It is observed that 2.68g of silver is deposited in 10 minutes on the cathode. Find the heat developed in the $20\Omega$ resistor during this period. Atomic weight of silver is 107.9g/mole.
