Question
Explain resonance with respect to $\mathrm{CO}_3^{2-}$ ion.
✓
Answer

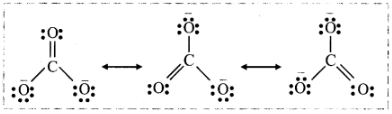

i. Three structures written for $\mathrm{CO}_3^{2-}$ ion.
ii. Each structure differs from the other only in the position of electrons without changing positions of the atoms. None of these individual structures is adequate to explain the properties of $\mathrm{CO}_3^{2-}$.
iii. The actual structure of $\mathrm{CO}_3^{2-}$ is a combination of three Lewis structures and is called as the resonance hybrid.
iv. Energy of the resonance hybrid structure is less than the energy of any single canonical form. Hence, resonance stabilizes certain polyatomic molecules or ions.
v. The average of all resonating structures contributes to overall bonding characteristic features of the molecule or ion.
ii. Each structure differs from the other only in the position of electrons without changing positions of the atoms. None of these individual structures is adequate to explain the properties of $\mathrm{CO}_3^{2-}$.
iii. The actual structure of $\mathrm{CO}_3^{2-}$ is a combination of three Lewis structures and is called as the resonance hybrid.
iv. Energy of the resonance hybrid structure is less than the energy of any single canonical form. Hence, resonance stabilizes certain polyatomic molecules or ions.
v. The average of all resonating structures contributes to overall bonding characteristic features of the molecule or ion.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
If $n =3$, what are the quantum number l and ml ?
→What is compressibility factor (Z)?
Write the relationship between $K _{ C }$ and $K _{ p }$ for the following equilibria:
i. $H _{2( g )}+ Br _{2( g )} \rightleftharpoons 2 H B r _{( g )}$
ii. $\quad 2 NOBr _{( g )} \rightleftharpoons 2 NO _{( g )}+ B r _{2( g )}$
iii. $\quad ClF _{( g )}+ F _{2( g )} \rightleftharpoons ClF _{3( g )}$
→i. $H _{2( g )}+ Br _{2( g )} \rightleftharpoons 2 H B r _{( g )}$
ii. $\quad 2 NOBr _{( g )} \rightleftharpoons 2 NO _{( g )}+ B r _{2( g )}$
iii. $\quad ClF _{( g )}+ F _{2( g )} \rightleftharpoons ClF _{3( g )}$
Give the different graphical representation of Charles’ law.

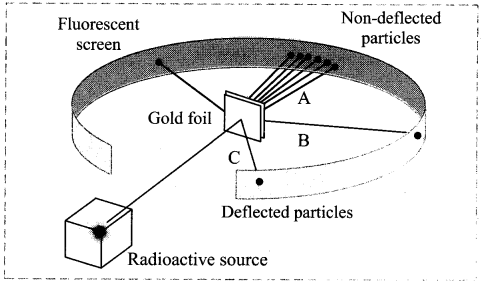

With reference to the representative model of the gold foil experiment, answer the following questions:
i. What evidence regarding an atom do lines A, B and C provide?
ii. How does Rutherford’s model contradict Thomson’s plum-pudding model?
iii. What results would you expect from the experiment if Thomson’s plum-pudding model was correct?
i. What evidence regarding an atom do lines A, B and C provide?
ii. How does Rutherford’s model contradict Thomson’s plum-pudding model?
iii. What results would you expect from the experiment if Thomson’s plum-pudding model was correct?
Explain how does the filling of electrons takes place in the modern periodic table across:
$i.$ Second period $ii.$ Third period
→$i.$ Second period $ii.$ Third period
Shravani was performing inorganic qualitative analysis of a salt. To an aqueous solution of that salt, she added silver nitrate. When a white precipitate was formed. On adding ammonium hydroxide to this, she obtained a clear solution. Comment on her observations and write the chemical reactions involved.
i. Equilibrium existing in the formation of oxyhaemoglobin in human body
ii. Refrigeration system in equilibrium
ii. Refrigeration system in equilibrium
Two processes, which are taking place in opposite directions are in equilibrium. How to write equilibrium constant expersions for heterogeneous equilibrium?
Write a note on naturally occurring nuclides with either odd number of protons or odd number of neutrons.
